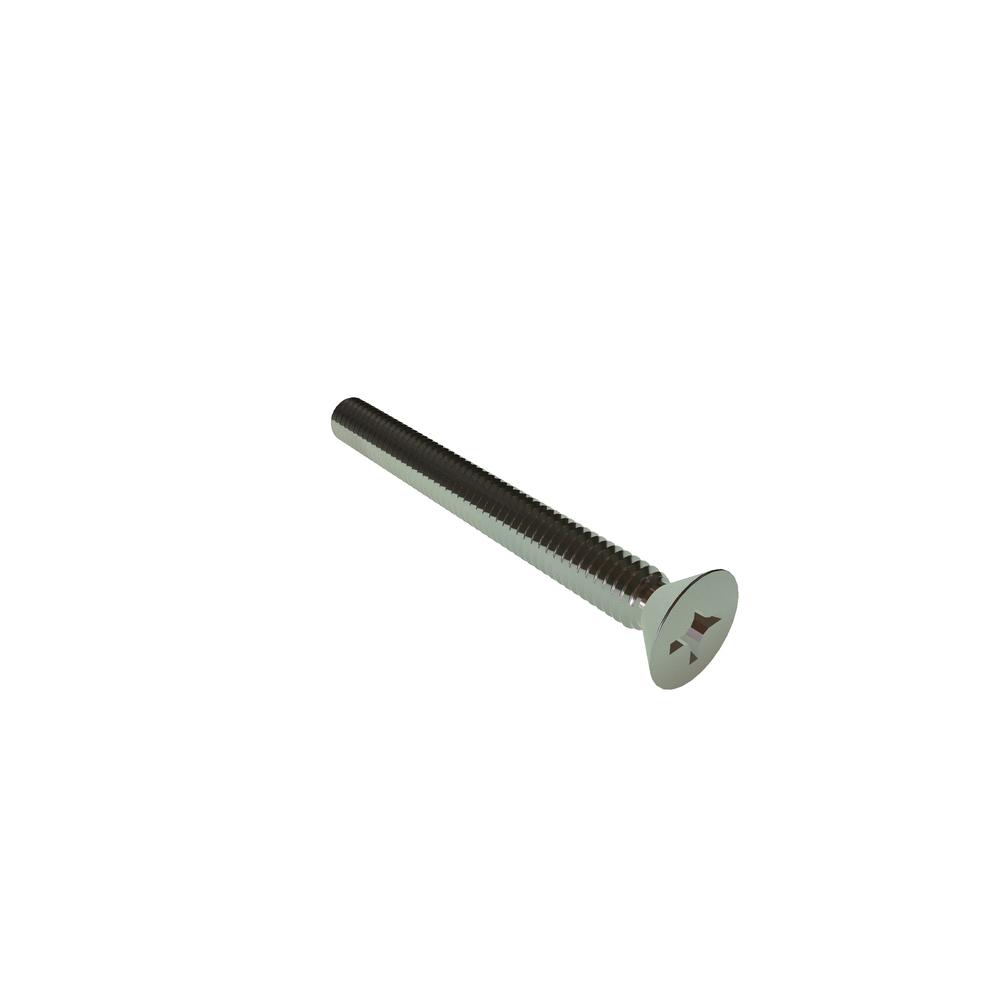

31C300PFMS
5/16-18 X 3 PHIL FLAT SST RoHS
Alternate Codes: N/A
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
Out of stock
| Thread Size | 5/16-18 |
| Material | Stainless Steel |
| Finish | Plain |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.313in |
| Head Type | Flat |
| Drive Type | Phillips |
| Drive Size | 4 |
| Recess Diameter | 0.358in |
| Head Height | 0.191in |
| Recess Depth (Min.) | 0.174in |
| Recess Depth (Max.) | 0.196in |
| Brand | VARIED |
| Additional Industry Cross Reference | 91771A595 |
| Length | 3.00in |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.597in |
| Head Diameter (Min.) | 0.556in |
