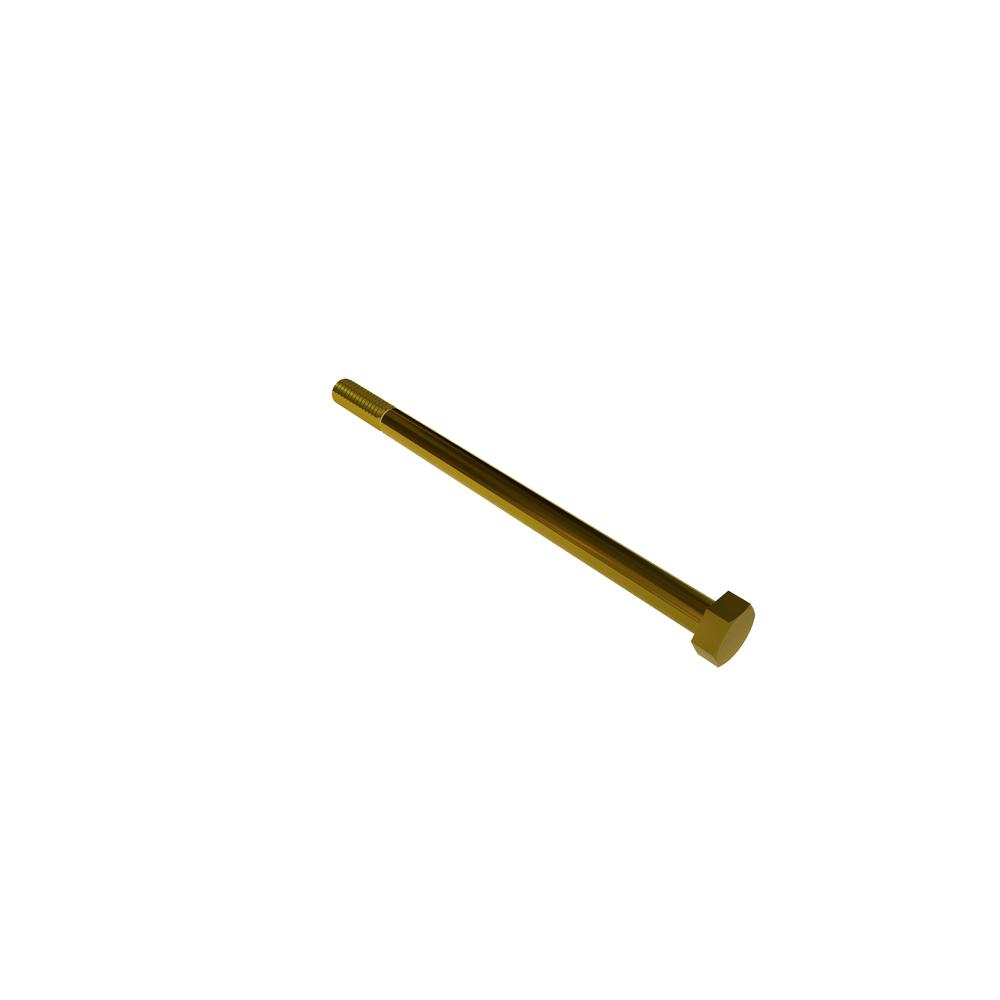

Image for reference purposes only. Actual product may vary.
31C500HHD8Y-NONROHS
5/16-18 X 5 HX HD GR 8 ZN YLW
Alternate Codes: 31C500HHD8Y
$0.000 / EA
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
Out of stock
| Meets (Standard) | ASME B18.2.1 |
| Length | 5.00in |
| Thread Size | 5/16-18 |
| Head Height (Min.) | 0.195in |
| Body Diameter (Max.) | 0.324in |
| Head Height (Max.) | 0.235in |
| Body Diameter (Min.) | 0.298in |
| Nominal Thread Size | 0.313in |
| Width Across Flat (Min.) | 0.484in |
| Thread Type | Unified Coarse Thread (UNC) |
| Material | Alloy Steel |
| Width Across Flat (Max.) | 0.500in |
| Finish | Zinc Yellow |
| Head Type | Hex |
| Grade | 8 |
| Brand | VARIED |
| Units | Inch |
