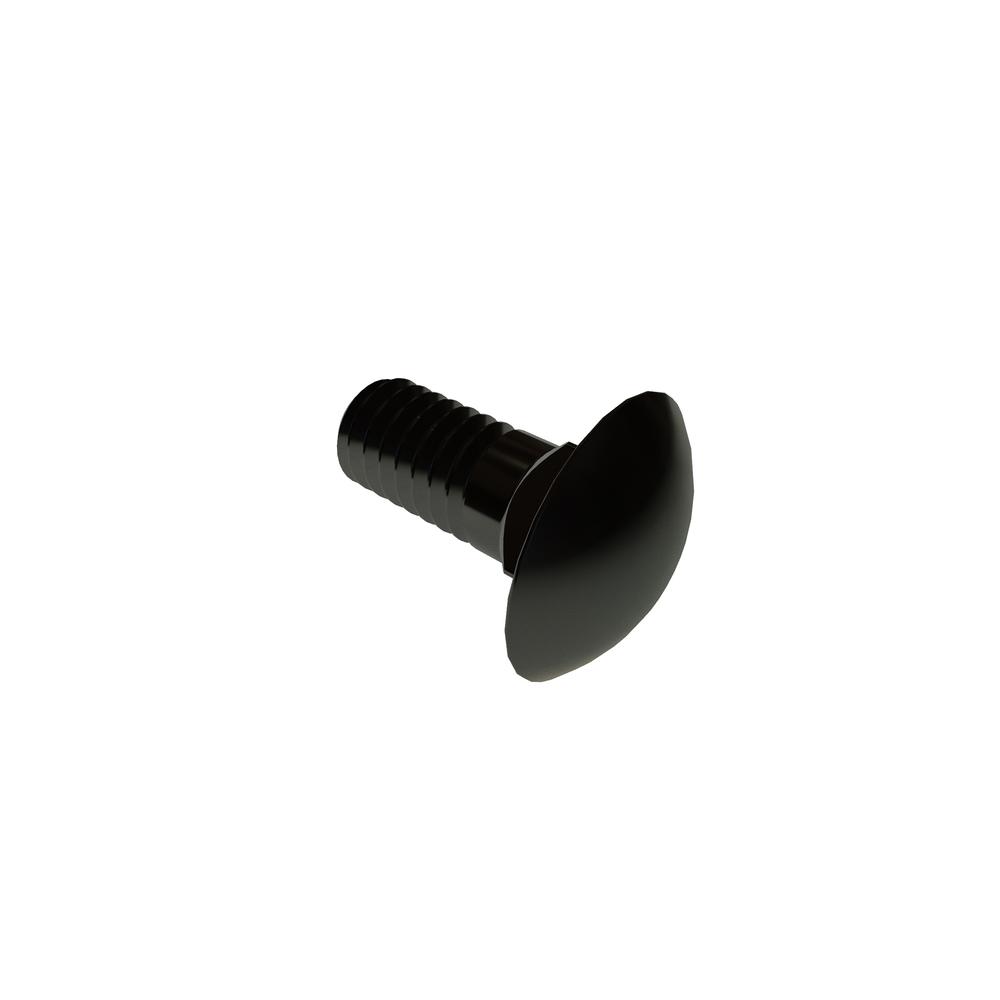

5/16-18 X 3/4 CARRIAGE BOLT GR 5 ZN CR3

31C75CAR5R

Item Id31C75CAR5R
Description5/16-18 X 3/4 CARRIAGE BOLT GR5 ZN RoHS
Alternate Codes90185A581
Extended Description5/16-18 X 3/4 CARRIAGE BOLT grade 5 steel Zinc plate
PackagingEA
Additional Industry Cross Reference90185A581
Body Diameter (Max.)0.324in
Body Diameter (Min.)0.272in
BrandVARIED
Corner radius0.031in
Fillet Radius0.031in
FinishZinc Clear
GradeGrade 5
Head Diameter (Max.)0.719in
Head Diameter (Min.)0.688in
Head Height (Max.)0.176in
Head Height (Min.)0.156in
MaterialSteel
Meets (Standard)ASME B18.5
Nominal Diameter0.313in
RoHSCompliant
Square Depth (Max.)0.187in
Square Depth (Min.)0.156in
Square Width (Max.)0.324in
Square Width (Min.)0.307in
Thread Length0.750in
Thread Size5/16-18
Thread TypeUnified Coarse Thread (UNC)
Total Length0.75in
TypeCarriage Bolt
UnitsInch
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
