31C75HHD5R
5/16-18 X 3/4 HX HD GR 5 ZN CR3
Alternate Codes: N/A

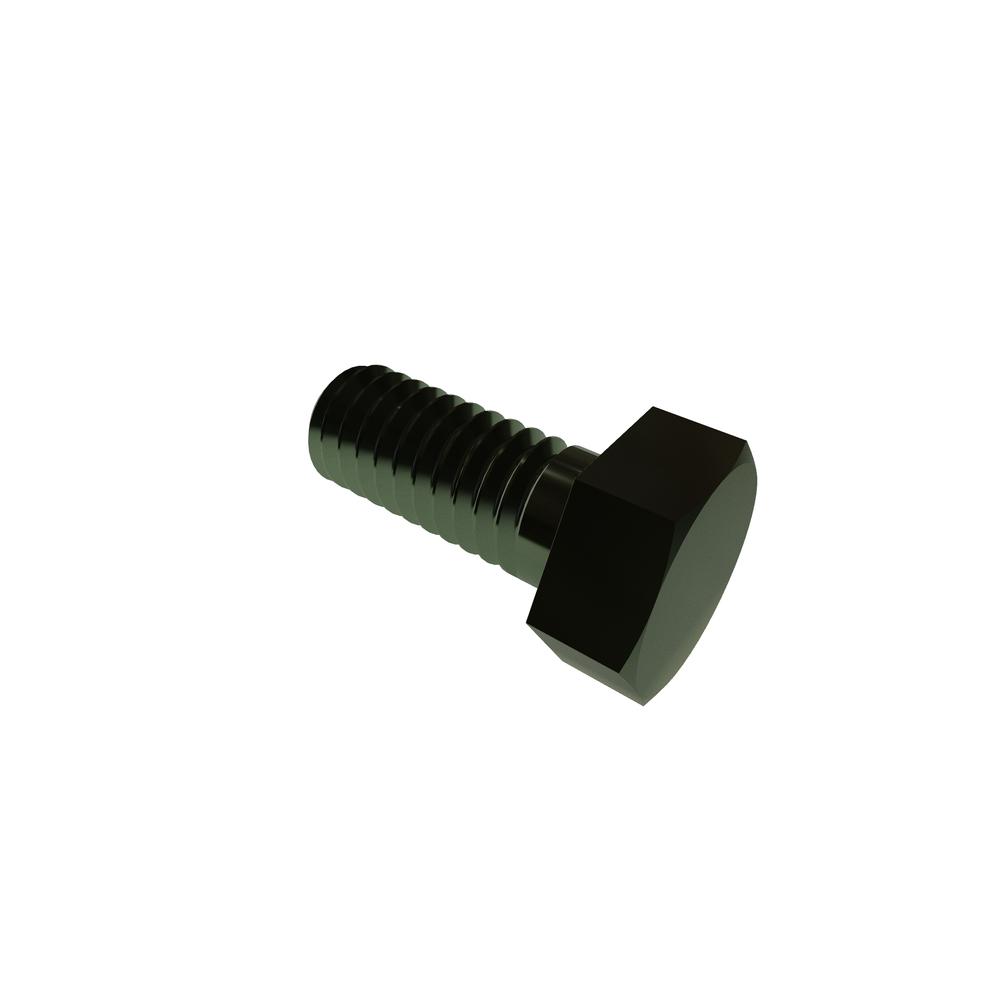

5/16-18 X 3/4 HEX Head Grade 5 steel Zinc plate RoHS3
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | Call For |
|---|---|---|---|---|---|
| $0.311 | $0.163 | $0.129 | $0.120 | $0.100 | Larger Quantities |
In Stock
| Thread Size | 5/16-18 |
| Material | Steel |
| Finish | Zinc Cr3 |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Head Type | Hex |
| Body Diameter (Min.) | 0.298in |
| Nominal Thread Size | 0.313in |
| Grade | 5 |
| Brand | VARIED |
| Additional Industry Cross Reference | 92865A581 |
| Length | 0.75in |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.2.1 |
| Body Diameter (Max.) | 0.324in |
| Head Height (Max.) | 0.235in |
| Head Height (Min.) | 0.195in |
| Width Across Flat (Max.) | 0.500in |
| Width Across Flat (Min.) | 0.484in |
