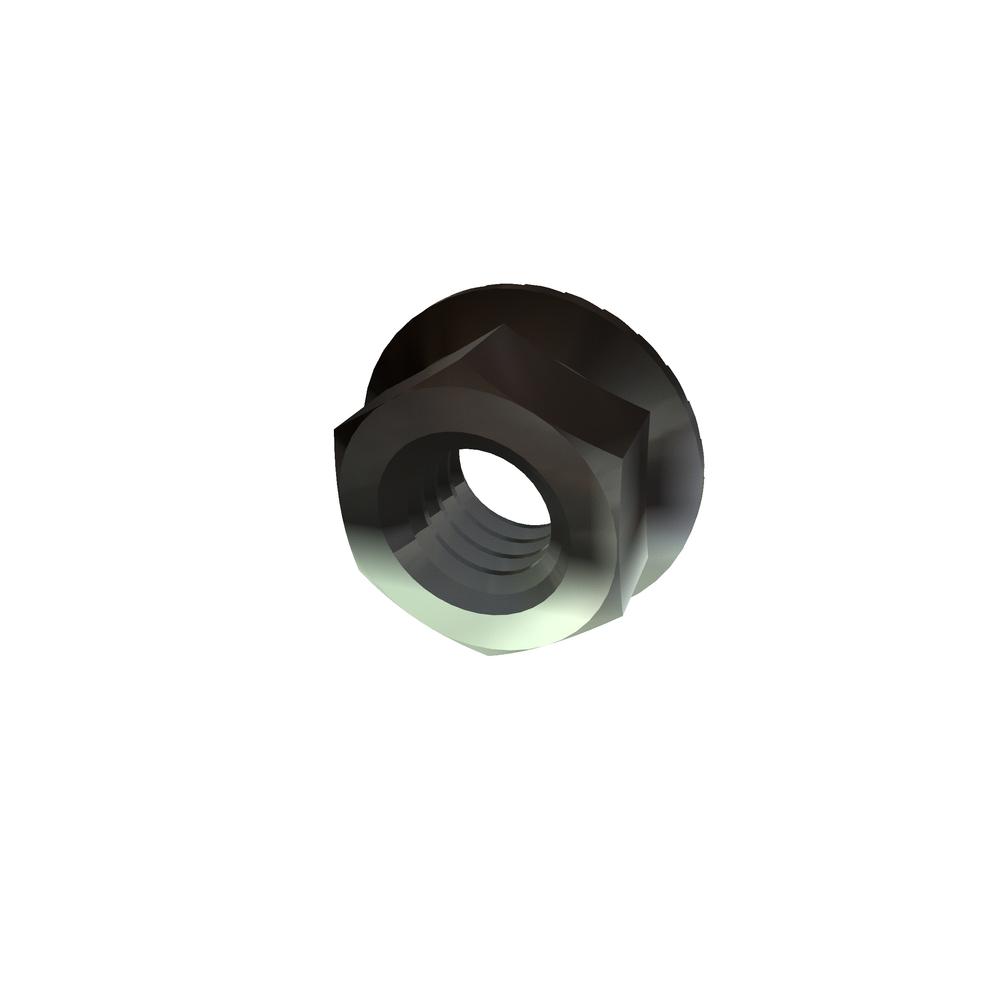

31CFLNS/W
5/16-18 FLANGE NUT WHIZLOK SST RoHS
Alternate Codes: 93776A441
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | Call For |
|---|---|---|---|---|---|
| $0.460 | $0.242 | $0.191 | $0.177 | $0.148 | Larger Quantities |
In Stock
| Thread Size | 5/16-18 |
| Material | Stainless Steel |
| Finish | Plain |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.313in |
| Flange Diameter (Min.) | 0.660in |
| Flange Diameter (Max.) | 0.680in |
| Flange Thickness (Min.) | 0.040in |
| Wrenching Height (Min.) | 0.170in |
| Brand | VARIED |
| Type | Flange Nut Whizlok |
| Additional Industry Cross Reference | 93776A441 |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.16.4 |
| Head Thickness (Max.) | 0.283in |
| Head Thickness (Min.) | 0.268in |
| Width Across Flat (Max.) | 0.500in |
| Width Across Flat (Min.) | 0.489in |
