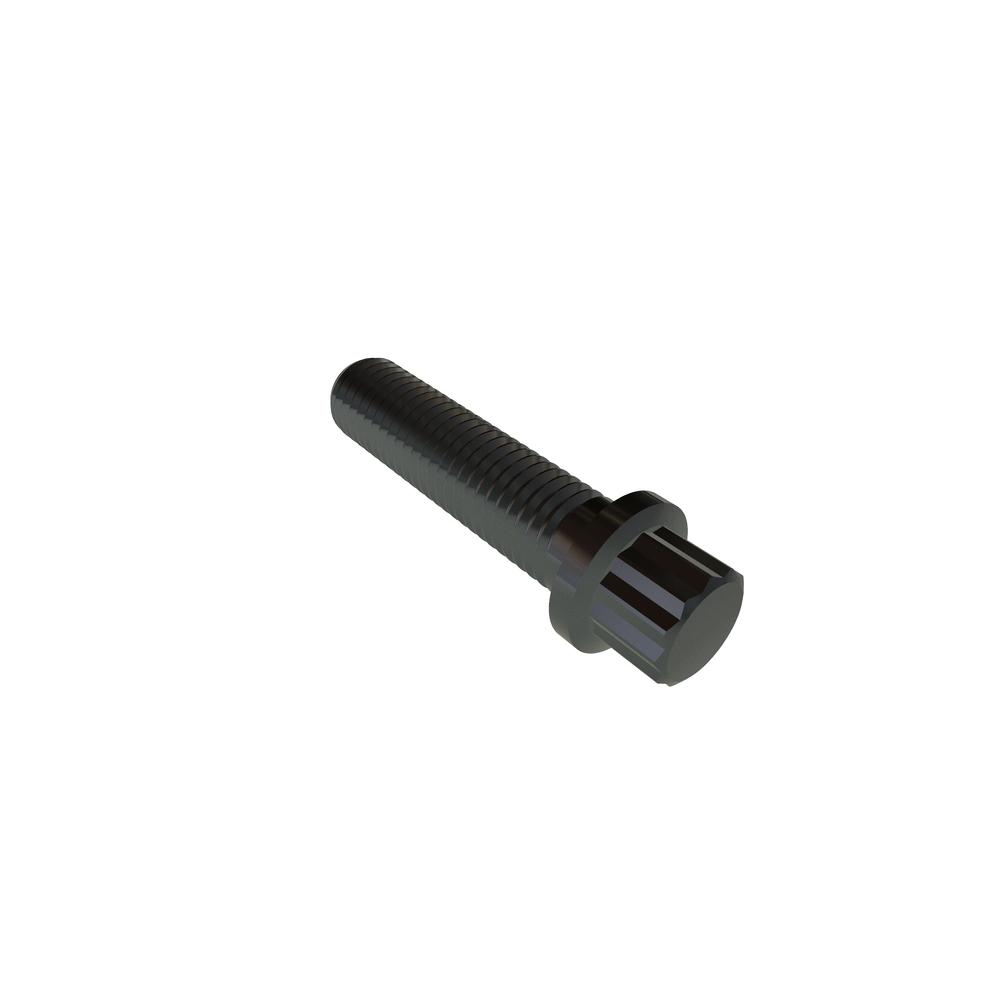

5/16-24 X 1 12-PT BOLT SST RoHS SI PLT
31F100TWBSS
| Item Id | 31F100TWBSS |
| Description | 5/16-24 X 1 12-PT BOLT SST SILVER PLT |
| Extended Description | 5/16-24 X 1 12-PT BOLT Stainless Steel RoHS3 Silver Plate |
| Packaging | EA |
| Body Diameter (Max.) | 0.313in |
| Body Diameter (Min.) | 0.305in |
| Brand | VARIED |
| Finish | Silver Plated |
| Flange Diameter (Max.) | 0.469in |
| Flange Diameter (Min.) | 0.457in |
| Flange Thickness (Min.) | 0.074in |
| Grade | Other |
| Head Height (Min.) | 0.312in |
| Head Type | 12-Point Bolt |
| Length | 1in |
| Material | Stainless Steel |
| Nominal Diameter | 0.313in |
| RoHS | Compliant |
| Socket Wrench Size | 5/16in |
| Thread Size | 5/16-24 |
| Thread Size | 5/16/2024 |
| Thread Style | Fully Threaded |
| Thread Type | Unified Fine Thread (UNF) |
| Total Length | 1in |
| Units | Inch |
| Width Across Flat (Max.) | 0.315in |
| Width Across Flat (Min.) | 0.306in |
| Wrenching Height (Min.) | 0.180in |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
