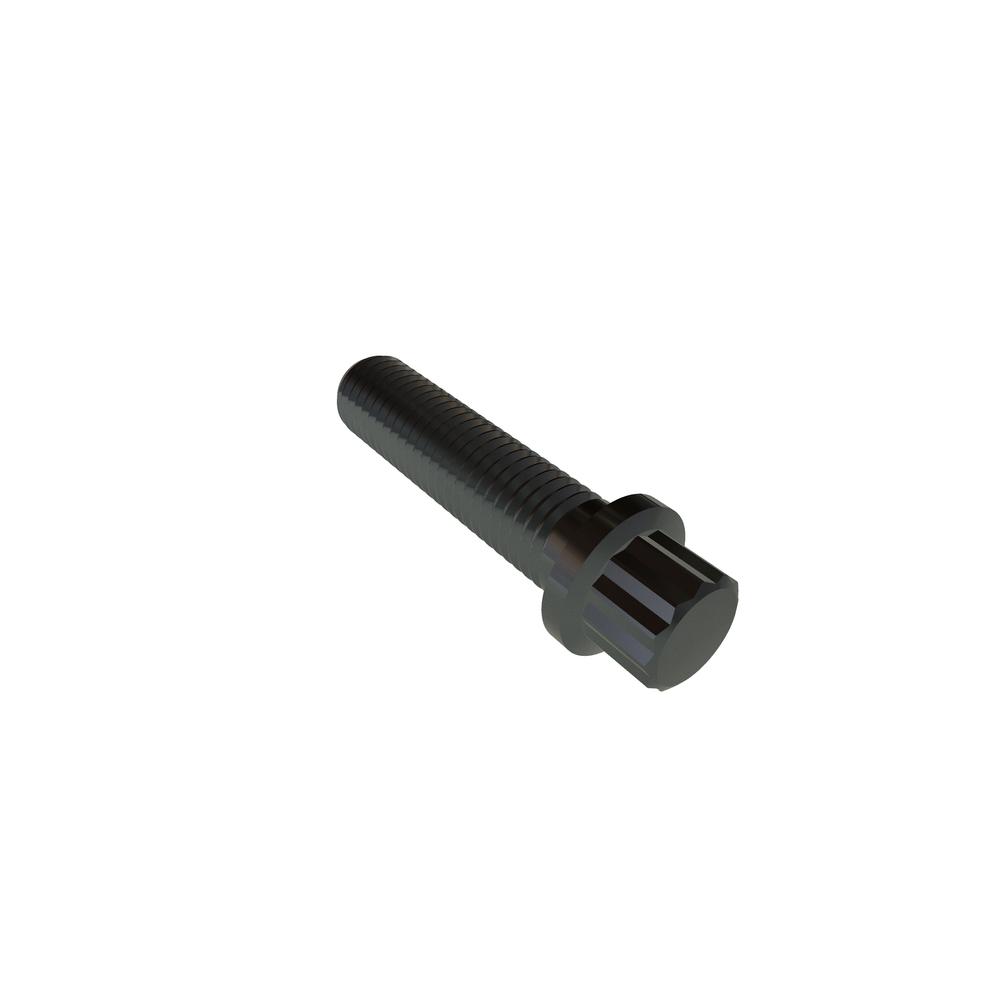

31F125TWBSS
5/16-24 X 1 1/4 12-PT BOLT SST RoHS SI
Alternate Codes: 100-02-116
5/16-24 X 1 1/4 12 point BOLT Stainless Steel RoHS3 Silver plate
Pricing per Unit
| 1-24 pcs | 25-49 pcs |
|---|---|
| $3.089 | $2.579 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
| Thread Size | 5/16-24 |
| Thread Size | 5/16/2024 |
| Material | Stainless Steel |
| Finish | Silver Plated |
| Units | Inch |
| Thread Type | Unified Fine Thread (UNF) |
| Nominal Diameter | 0.313in |
| Head Type | 12-Point Bolt |
| Body Diameter (Min.) | 0.305in |
| Grade | Other |
| Flange Diameter (Min.) | 0.457in |
| Flange Diameter (Max.) | 0.469in |
| Flange Thickness (Min.) | 0.074in |
| Wrenching Height (Min.) | 0.180in |
| Brand | VARIED |
| Length | 1.250in |
| RoHS | Compliant |
| Body Diameter (Max.) | 0.313in |
| Head Height (Min.) | 0.312in |
| Width Across Flat (Max.) | 0.315in |
| Width Across Flat (Min.) | 0.306in |
| Thread Style | Fully Threaded |
| Socket Wrench Size | 5/16in |
| Total Length | 1.250in |
