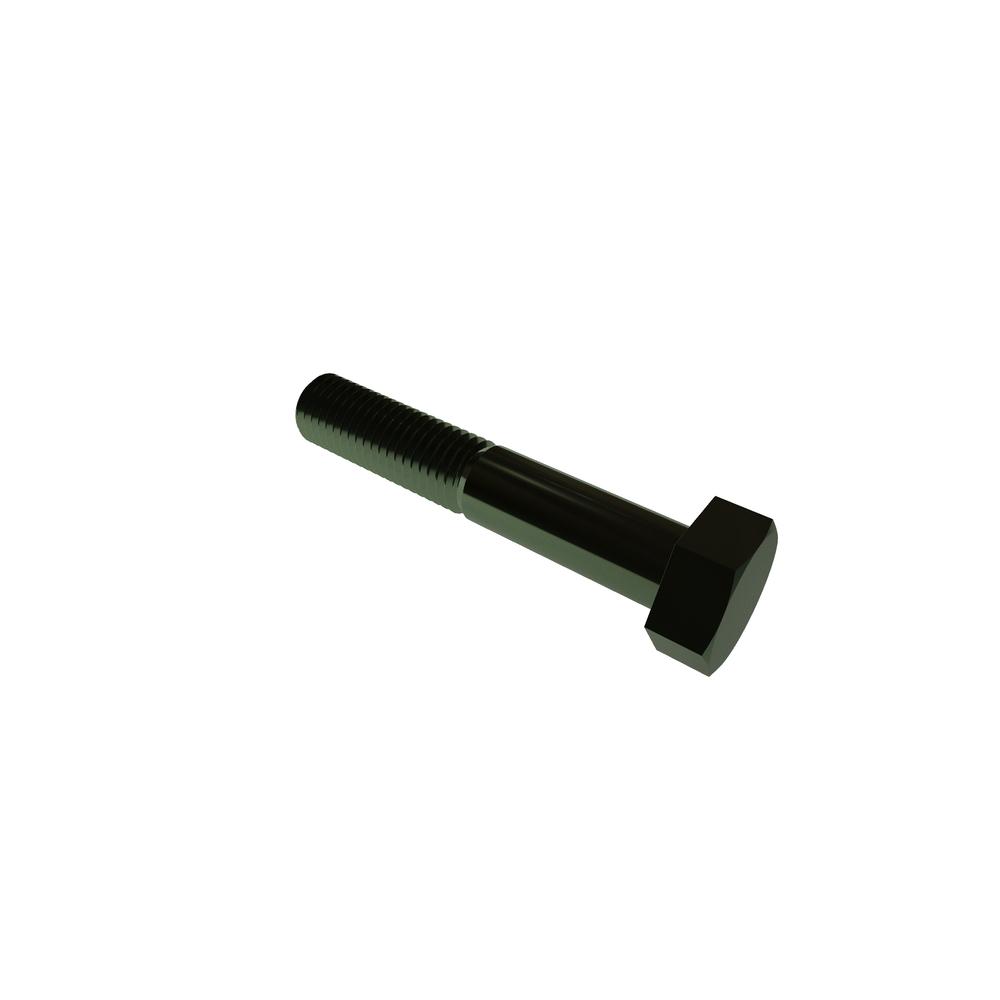

5/16-24 X 1 3/4 HX HD GR 5 ZN CR3
31F175HHD5R
| Item Id | 31F175HHD5R |
| Description | 5/16-24 X 1 3/4 HX HD GR5 ZN RoHS |
| Alternate Codes | 100165 |
| Extended Description | 5/16-24 X 1 3/4 Hex Head Grade 5 steel Zinc plate RoHS3 |
| Packaging | EA |
| Additional Industry Cross Reference | 91247A112 |
| Body Diameter (Max.) | 0.324in |
| Body Diameter (Min.) | 0.298in |
| Brand | VARIED |
| Finish | Zinc Cr3 |
| Grade | 5 |
| Head Height (Max.) | 0.235in |
| Head Height (Min.) | 0.195in |
| Head Type | Hex |
| Length | 1.75in |
| Material | Steel |
| Meets (Standard) | ASME B18.2.1 |
| Nominal Thread Size | 0.313in |
| RoHS | Compliant |
| Thread Size | 5/16-24 |
| Thread Type | Unified Fine Thread (UNF) |
| Units | Inch |
| Width Across Flat (Max.) | 0.500in |
| Width Across Flat (Min.) | 0.484in |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
