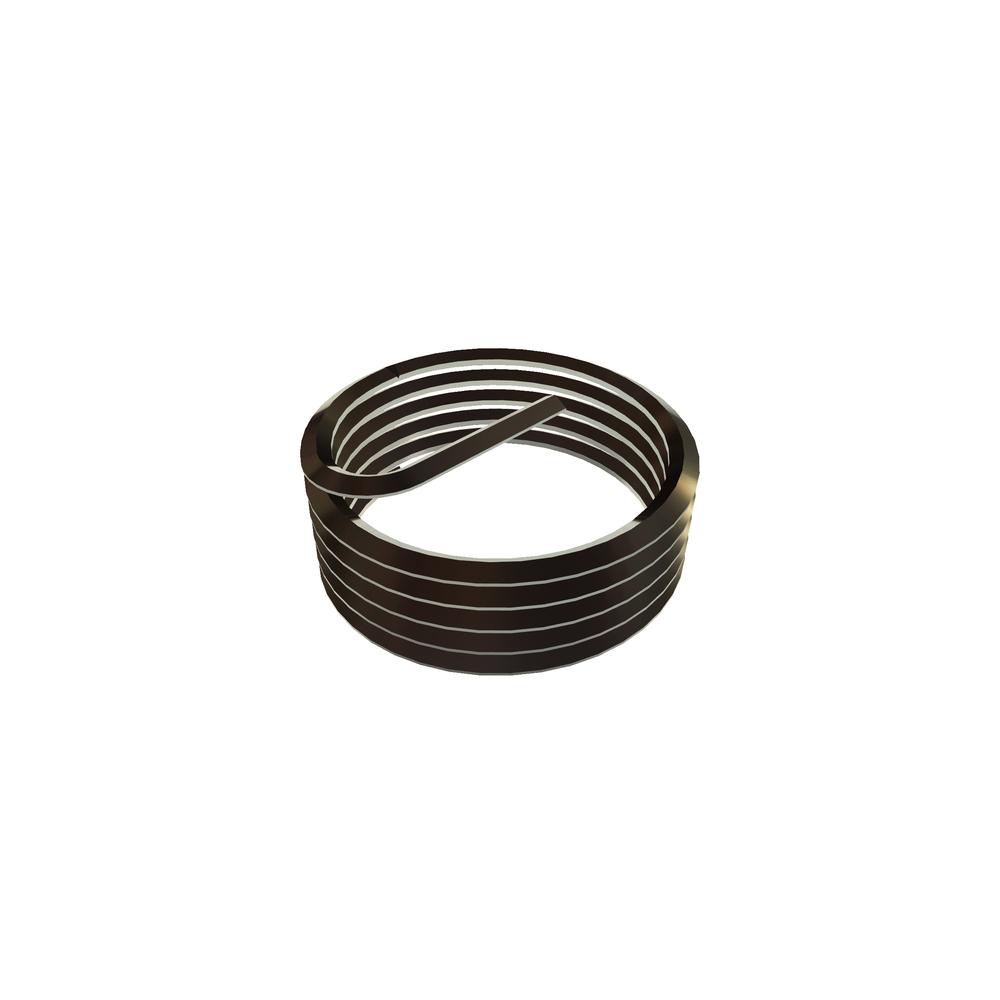

3585-04CNW224
4-40 LKG HELI INS DFL
Alternate Codes: BACI12AE-C04-20L, MS21209-C0420L, MS21209C0420L
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | Call For |
|---|---|---|---|---|---|
| $0.825 | $0.550 | $0.493 | $0.440 | $0.367 | Larger Quantities |
In Stock
| Thread Size | 4-40 |
| Material | 304 Stainless Steel |
| Finish | Dry Film Lubricant |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.112in |
| Free Coil Diameter (Min.) | 0.144in |
| Free Coil Diameter (Max.) | 0.159in |
| Insert Type | Standard Wire Inserts |
| Number of Coils | 6 3/4 |
| Packaging | Bulk |
| No. of Sides per Grip Coil | 1 |
| Number of Grip Coils | 1 |
| Number of Coils From End Insert | 3 3/8 |
| Brand | HELICOIL/STANLEY |
| Type | Screw-lock Inserts (internal-lock) |
| Additional Industry Cross Reference | 91000A419 |
| RoHS | Compliant |
