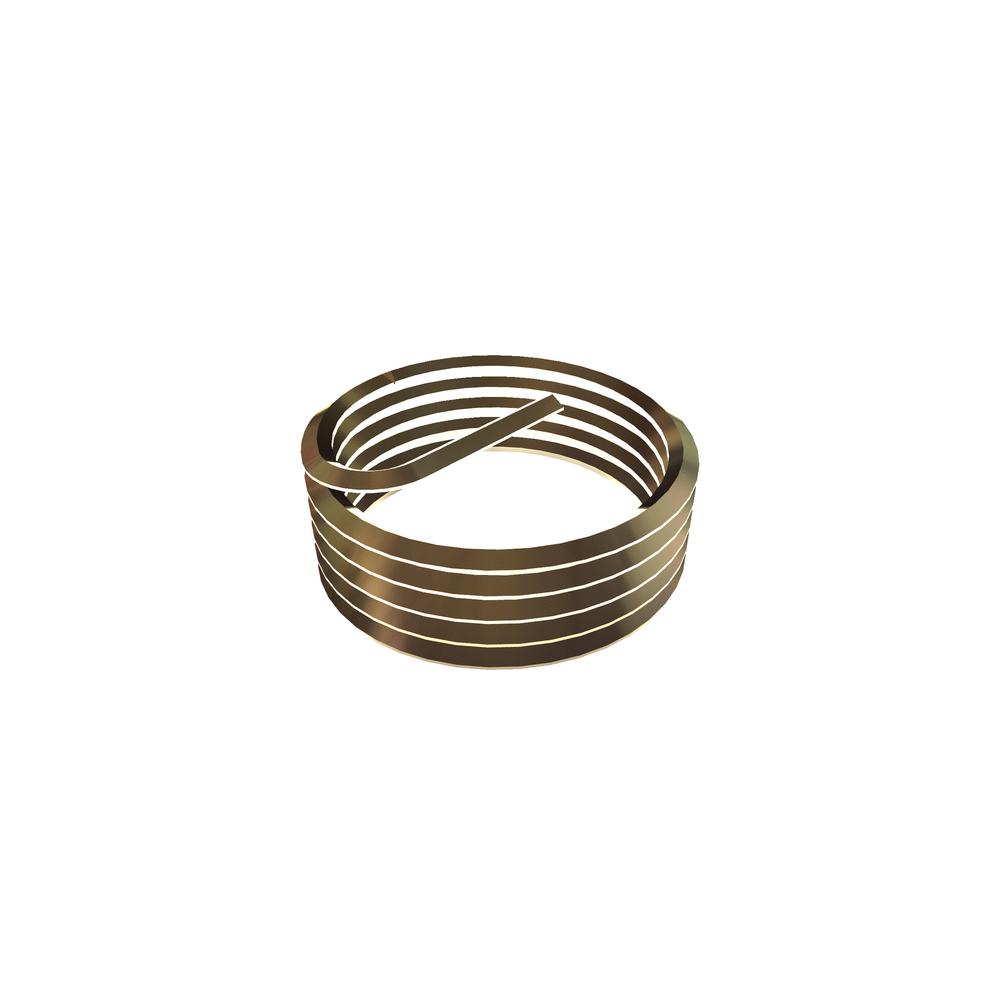

5-40 LKG HELI-COIL INS RoHS
3585-05CN188
| Item Id | 3585-05CN188 |
| Description | 5-40 LKG HELI-COIL INS RoHS |
| Alternate Codes | 5340-00-863-8121, BACi12AE-C0515, MS21209-C0515, MS21209C0515 |
| Extended Description | |
| Packaging | EA |
| Additional Industry Cross Reference | 90296A022 |
| Brand | HELICOIL/STANLEY |
| Finish | Plain |
| Free Coil Diameter (Max.) | 0.173in |
| Free Coil Diameter (Min.) | 0.158in |
| Insert Type | Standard Wire Inserts |
| Material | 304 Stainless Steel |
| No. of Sides per Grip Coil | 1 |
| Nominal Diameter | 0.125in |
| Number of Coils | 5 1/2 |
| Number of Coils From End Insert | 2 3/4 |
| Number of Grip Coils | 1 |
| Packaging | Bulk |
| RoHS | Compliant |
| Thread Size | 5-40 |
| Thread Type | Unified Coarse Thread (UNC) |
| Type | Screw-lock Inserts (internal-lock) |
| Units | Inch |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
