3585-2EN328

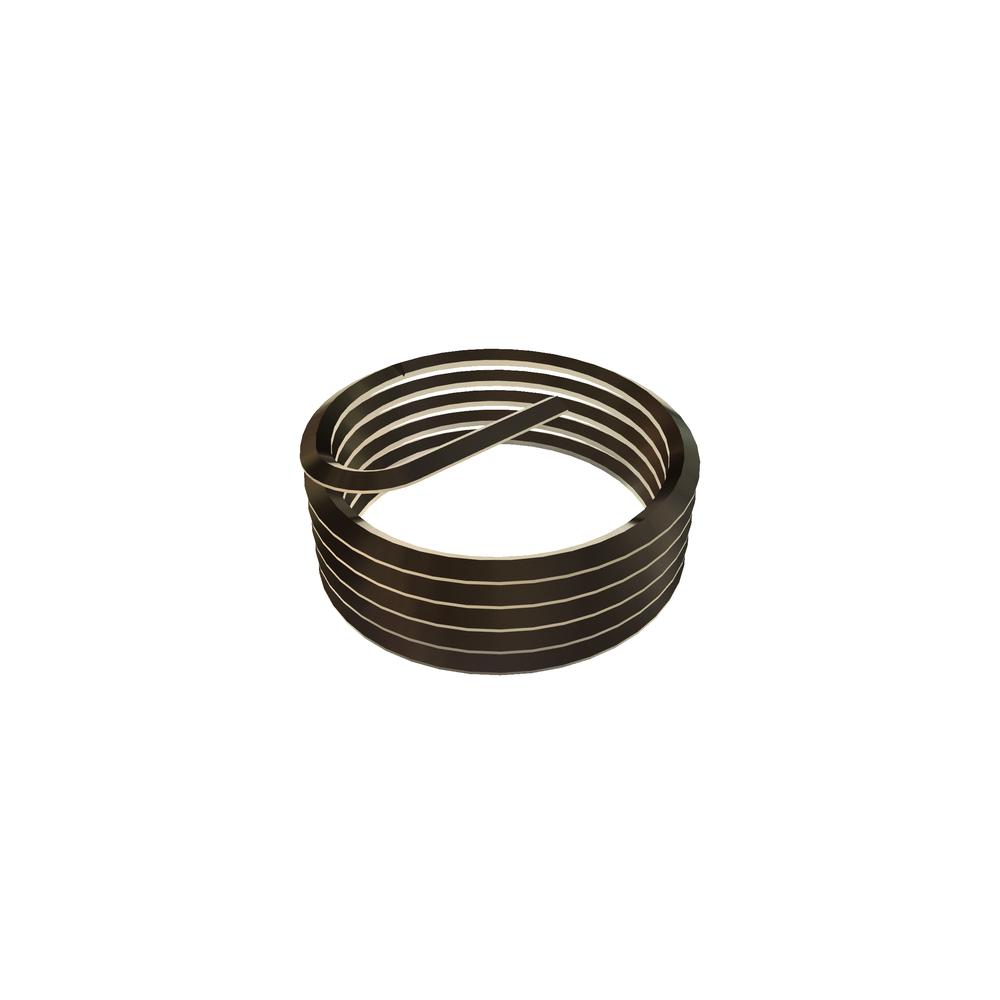

8-32 LKG HELI NIT60INS
Alternate Codes: 96246A657
Pricing per Unit
| 1-49 pcs | 50-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | Call For |
|---|---|---|---|---|---|
| $1.900 | $1.520 | $1.169 | $1.027 | $0.927 | Larger Quantities |
Out of stock
| Thread Size | 8-32 |
| Material | Nitronic 60 |
| Finish | Plain |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.164in |
| Free Coil Diameter (Min.) | 0.205in |
| Free Coil Diameter (Max.) | 0.220in |
| Insert Type | Standard Wire Inserts |
| Number of Coils | 8 3/8 |
| Packaging | Bulk |
| No. of Sides per Grip Coil | 1 |
| Number of Grip Coils | 1 |
| Number of Coils From End Insert | 4 3/16 |
| Brand | HELICOIL/STANLEY |
| Type | Screw-lock Inserts (internal-lock) |
| Additional Industry Cross Reference | 96246A657 96246A657 |
| RoHS | Compliant |
