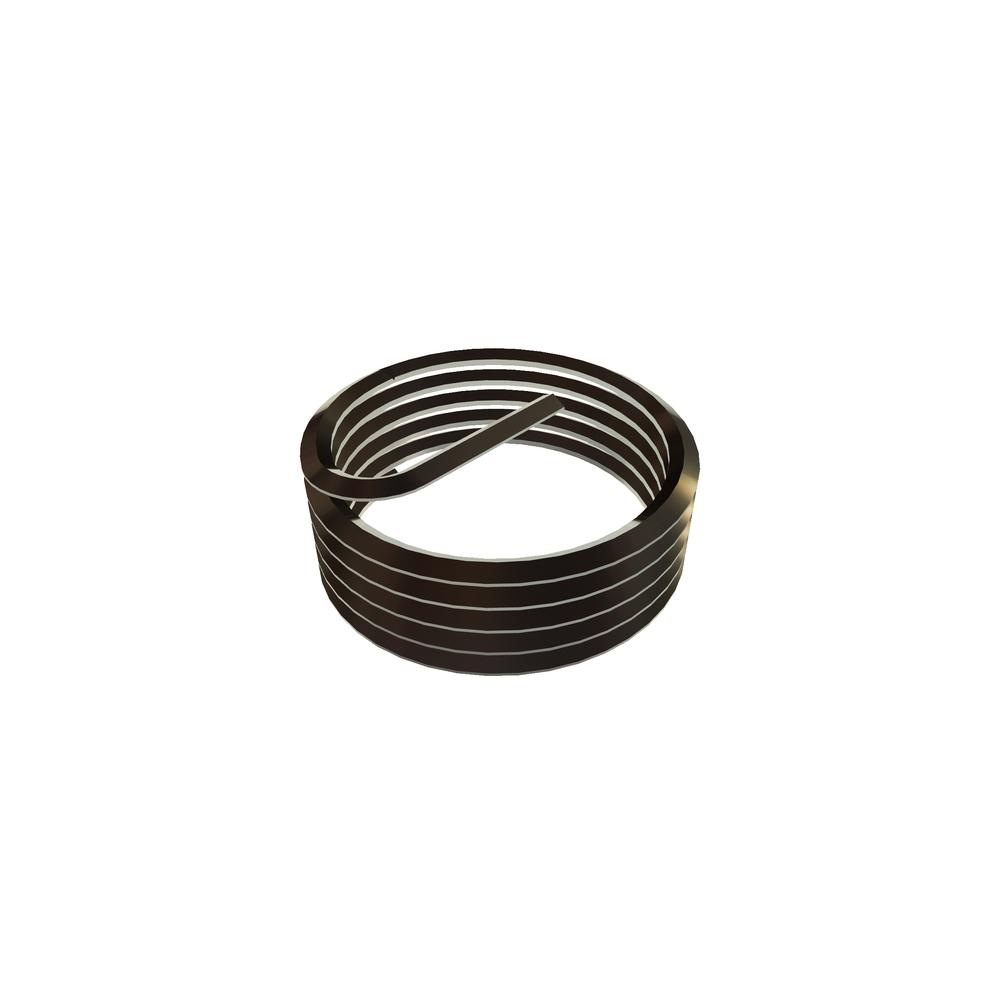

3585-5CNW625
5/16-18 LKG HELI INS DFL
Alternate Codes: BACI12AE-C5-20L, MS21209-C5-20L, MS21209C5-20L
Pricing per Unit
| 1-49 pcs | 50-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | Call For |
|---|---|---|---|---|---|
| $2.102 | $1.681 | $1.293 | $1.136 | $1.025 | Larger Quantities |
In Stock
| Thread Size | 5/16-18 |
| Material | 304 Stainless Steel |
| Finish | Dry Film Lubricant |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.313in |
| Free Coil Diameter (Min.) | 0.380in |
| Free Coil Diameter (Max.) | 0.400in |
| Insert Type | Standard Wire Inserts |
| Number of Coils | 9 1/4 |
| Packaging | Bulk |
| No. of Sides per Grip Coil | 1 |
| Number of Grip Coils | 1 |
| Number of Coils From End Insert | 4 5/8 |
| Brand | HELICOIL/STANLEY |
| Type | Screw-lock Inserts (internal-lock) |
| Additional Industry Cross Reference | 91000A458 |
| RoHS | Compliant |
