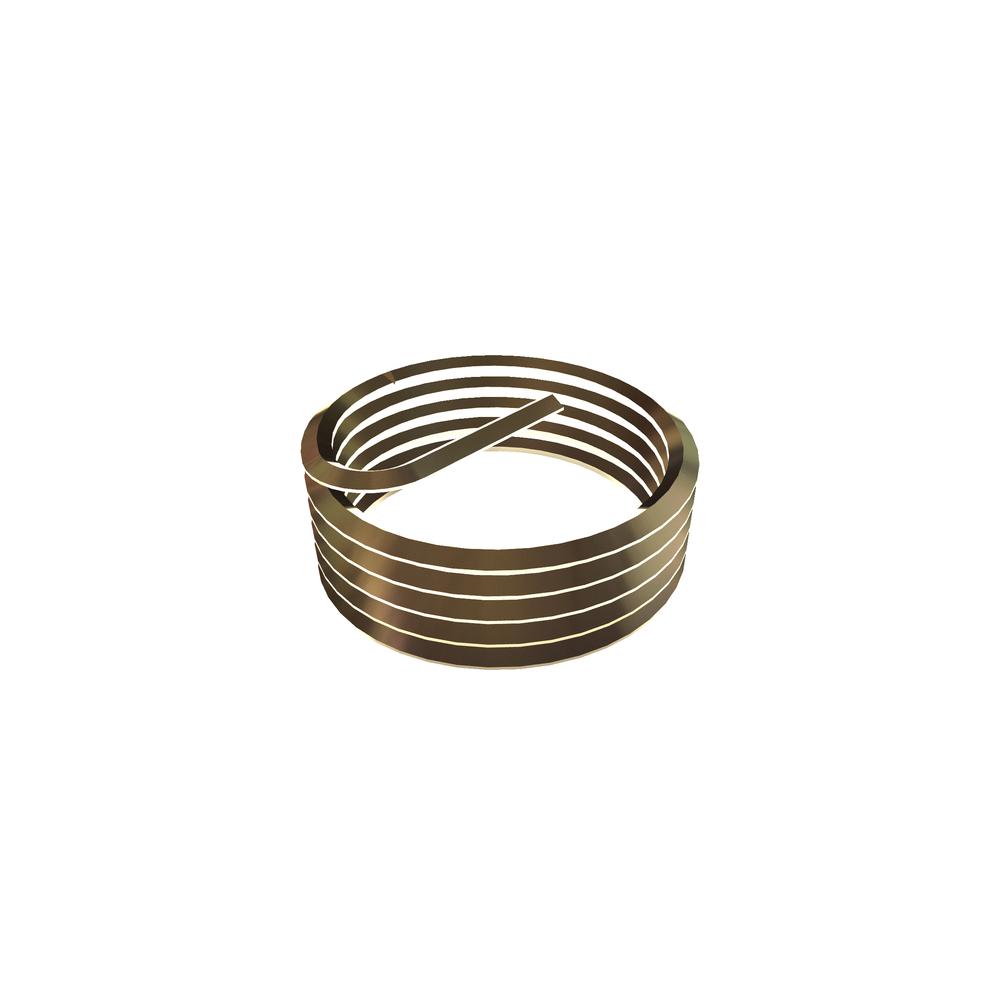

3591-2CN164
8-36 LKG HELI INS
Alternate Codes: BACi12AE-F0810, MS21209-F0810, MS21209F0810
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | Call For |
|---|---|---|---|---|---|
| $0.880 | $0.587 | $0.525 | $0.469 | $0.391 | Larger Quantities |
In Stock
| Thread Size | 8-36 |
| Material | 304 Stainless Steel |
| Finish | Plain |
| Units | Inch |
| Thread Type | Unified Fine Thread (UNF) |
| Nominal Diameter | 0.164in |
| Free Coil Diameter (Min.) | 0.204in |
| Free Coil Diameter (Max.) | 0.224in |
| Insert Type | Standard Wire Inserts |
| Number of Coils | 3 7/8 |
| Packaging | Bulk |
| No. of Sides per Grip Coil | 1 |
| Number of Grip Coils | 1 |
| Number of Coils From End Insert | 1 15/16 |
| Brand | HELICOIL/STANLEY |
| Type | Screw-lock Inserts (internal-lock) |
| Additional Industry Cross Reference | 90296A028 |
| RoHS | Compliant |
