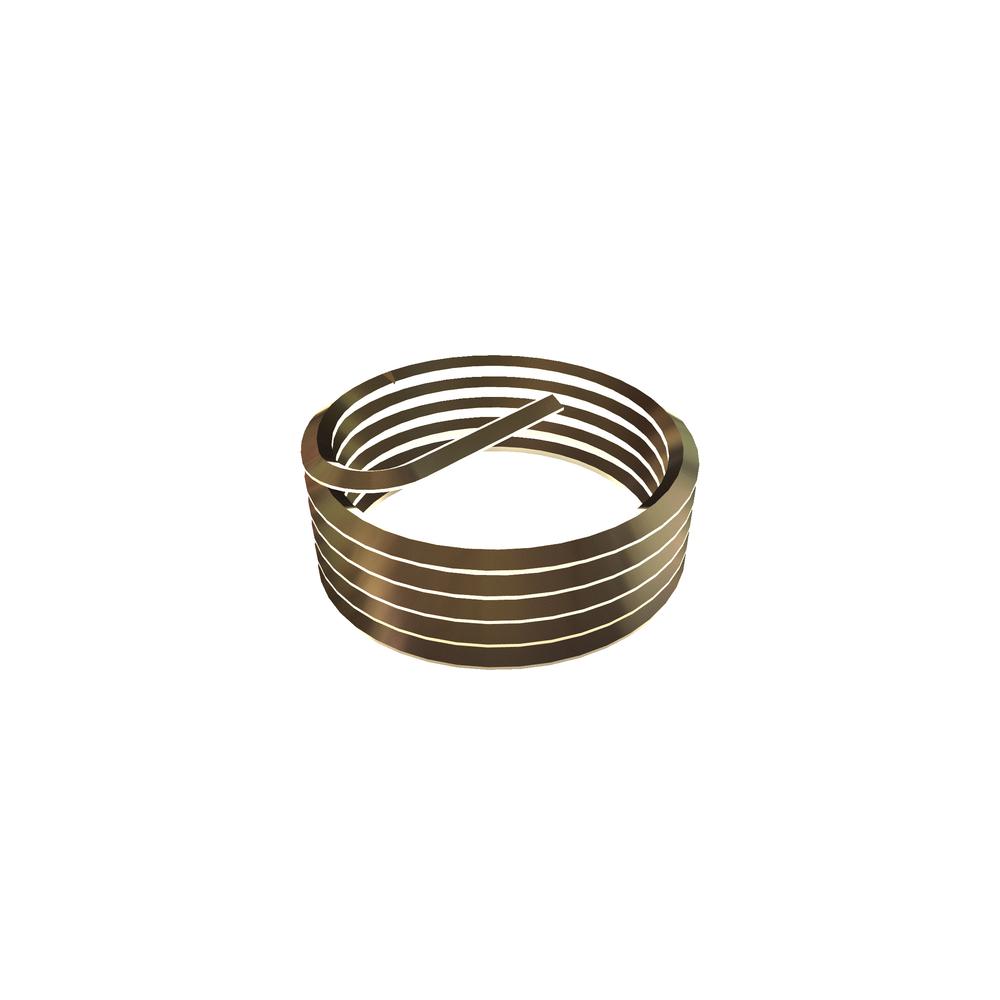

3591-2CN328
8-36 LKG HELI INS
Alternate Codes: BACi12AE-F0820, MS21209-F0820, MS21209F0820
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | Call For |
|---|---|---|---|---|---|
| $1.020 | $0.680 | $0.609 | $0.544 | $0.453 | Larger Quantities |
In Stock
| Thread Size | 8-36 |
| Material | 304 Stainless Steel |
| Finish | Plain |
| Units | Inch |
| Thread Type | Unified Fine Thread (UNF) |
| Nominal Diameter | 0.164in |
| Free Coil Diameter (Min.) | 0.204in |
| Free Coil Diameter (Max.) | 0.224in |
| Insert Type | Standard Wire Inserts |
| Number of Coils | 9 1/8 |
| Packaging | Bulk |
| No. of Sides per Grip Coil | 1 |
| Number of Grip Coils | 1 |
| Number of Coils From End Insert | 4 9/16 |
| Brand | HELICOIL/STANLEY |
| Type | Screw-lock Inserts (internal-lock) |
| Additional Industry Cross Reference | 90296A193 |
| RoHS | Compliant |
