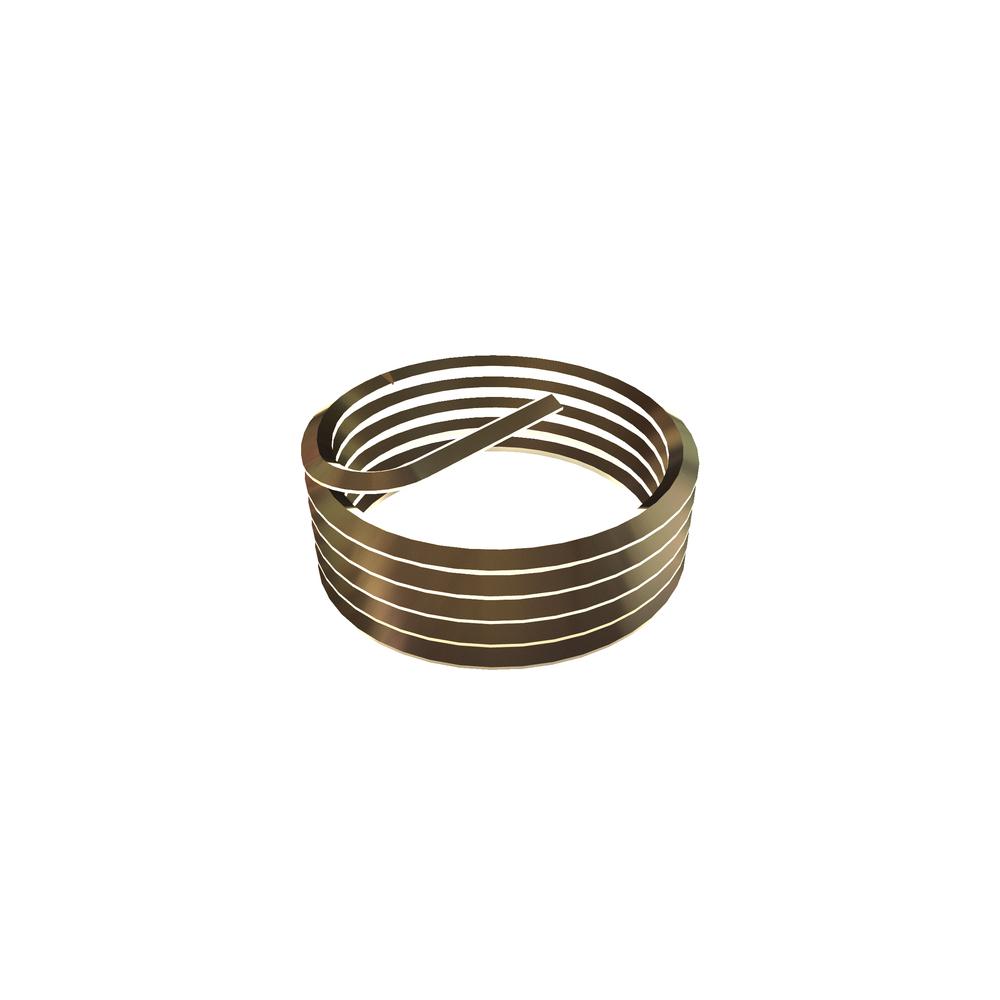

3591-3CN380S
10-32 LKG HELI INS S/F
Alternate Codes: MS21209-F1-20 STRIP, MS21209-F1-20S, MS21209-F120S, MS21209F1-20 STRIP, MS21209F1-20S
RoHS
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs |
|---|---|---|---|---|
| $1.140 | $0.760 | $0.681 | $0.608 | $0.507 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
| Thread Size | 10-32 |
| Material | 304 Stainless Steel |
| Finish | Plain |
| Units | Inch |
| Thread Type | Unified Fine Thread (UNF) |
| Nominal Diameter | 0.190in |
| Free Coil Diameter (Min.) | 0.236in |
| Free Coil Diameter (Max.) | 0.256in |
| Insert Type | Standard Wire Inserts |
| Number of Coils | 9 1/2 |
| Packaging | Strip Feed |
| No. of Sides per Grip Coil | 1 |
| Number of Grip Coils | 1 |
| Number of Coils From End Insert | 4 3/4 |
| Brand | HELICOIL/STANLEY |
| Type | Screw-lock Inserts (internal-lock) |
| RoHS | Compliant |
