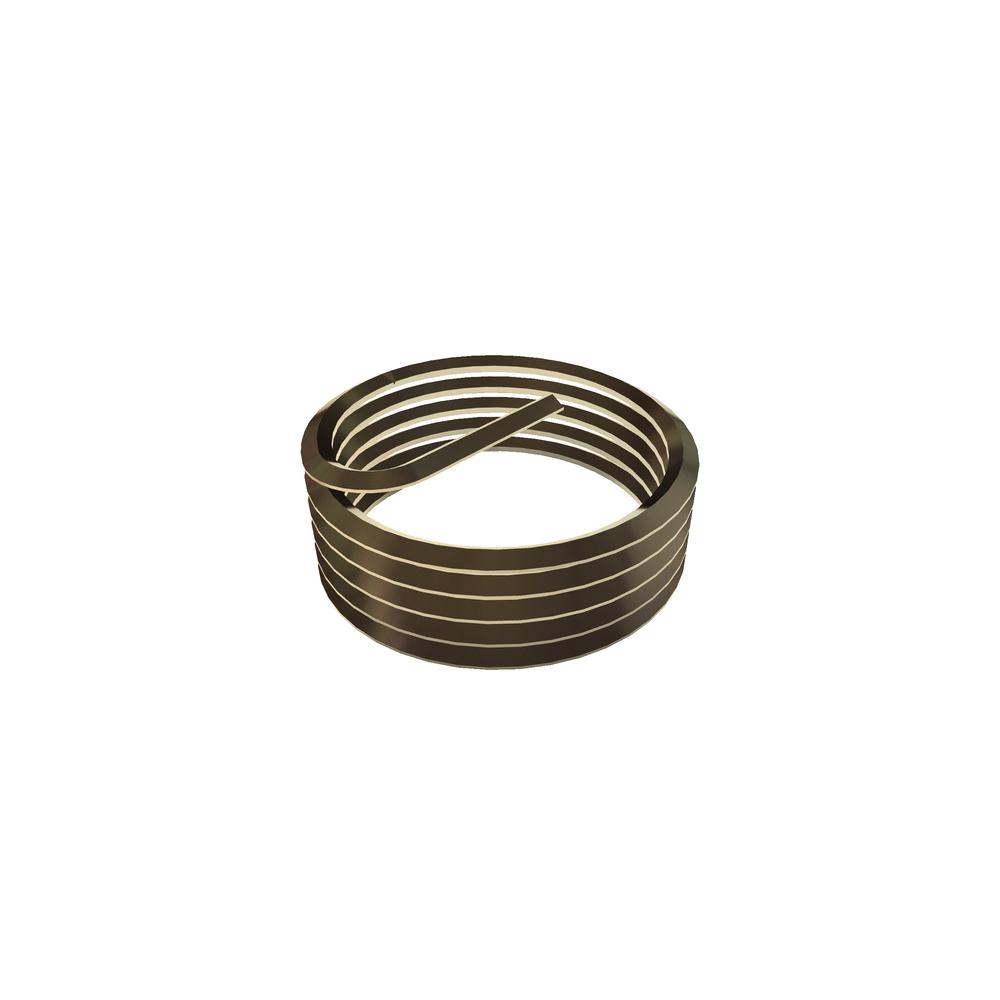

10-32 LKG HELI INS CAD PLT
3591-3CNY380
| Item Id | 3591-3CNY380 |
| Description | 10-32 LKG HELI-COIL INS CAD PLT Non-RoHS |
| Alternate Codes | BACI12AE-F1-20P, MS21209-F1-20P, MS21209-F120P, MS21209F1-20P |
| Extended Description | |
| Packaging | EA |
| Brand | HELICOIL/STANLEY |
| Finish | Cadmium |
| Free Coil Diameter (Max.) | 0.256in |
| Free Coil Diameter (Min.) | 0.236in |
| Insert Type | Standard Wire Inserts |
| Material | 304 Stainless Steel |
| No. of Sides per Grip Coil | 1 |
| Nominal Diameter | 0.190in |
| Number of Coils | 9 1/2 |
| Number of Coils From End Insert | 4 3/4 |
| Number of Grip Coils | 1 |
| Packaging | Bulk |
| Thread Size | 10-32 |
| Thread Type | Unified Fine Thread (UNF) |
| Type | Screw-lock Inserts (internal-lock) |
| Units | Inch |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
