3591-5CN469

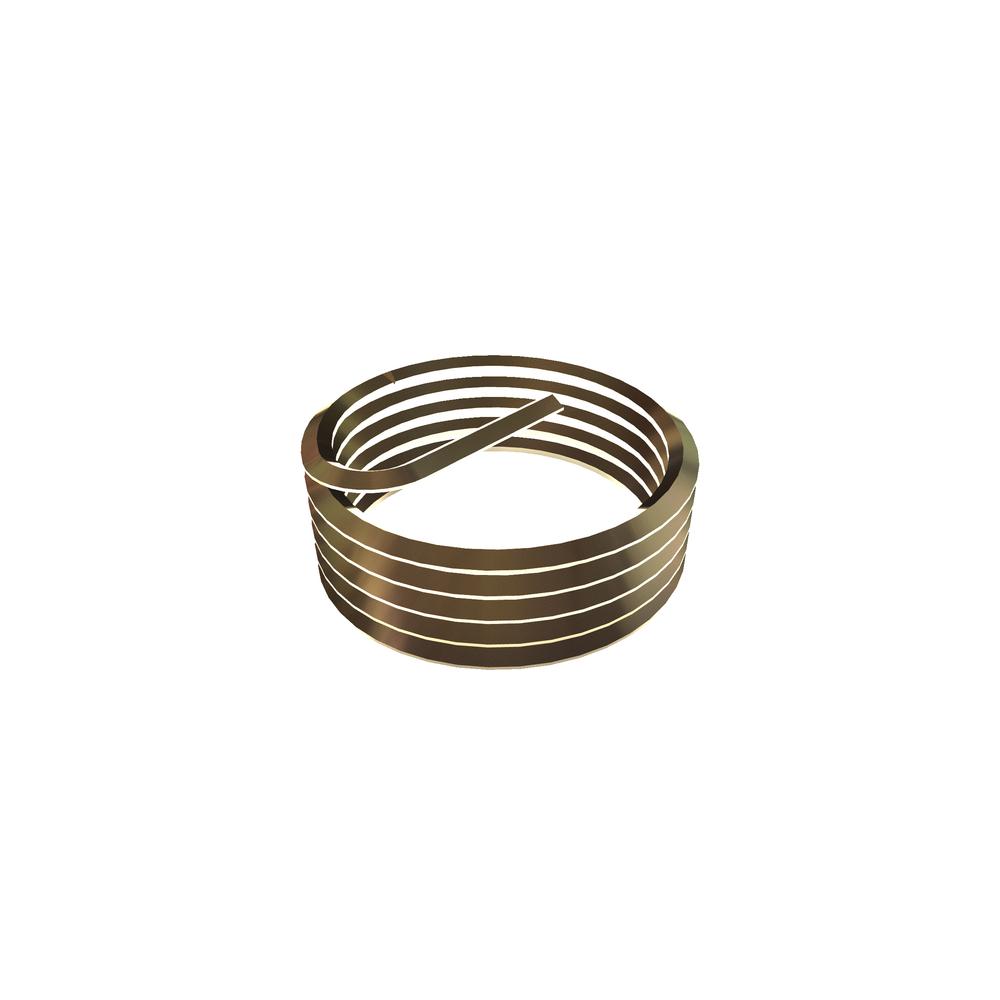

5/16-24 LKG HELI INS
Alternate Codes: 5340-00-847-0734, BACI12AE-F5-15, MS21209-F5-15, MS21209F5-15
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | Call For |
|---|---|---|---|---|---|
| $0.970 | $0.647 | $0.579 | $0.517 | $0.431 | Larger Quantities |
In Stock
| Thread Size | 5/16-24 |
| Material | 304 Stainless Steel |
| Finish | Plain |
| Units | Inch |
| Thread Type | Unified Fine Thread (UNF) |
| Nominal Diameter | 0.313in |
| Free Coil Diameter (Min.) | 0.380in |
| Free Coil Diameter (Max.) | 0.400in |
| Insert Type | Standard Wire Inserts |
| Number of Coils | 8 7/8 |
| Packaging | Bulk |
| No. of Sides per Grip Coil | 2 |
| Number of Grip Coils | 2 |
| Number of Coils From End Insert | 4 7/16 |
| Brand | HELICOIL/STANLEY |
| Type | Screw-lock Inserts (internal-lock) |
| Additional Industry Cross Reference | 90296A212 |
| RoHS | Compliant |
