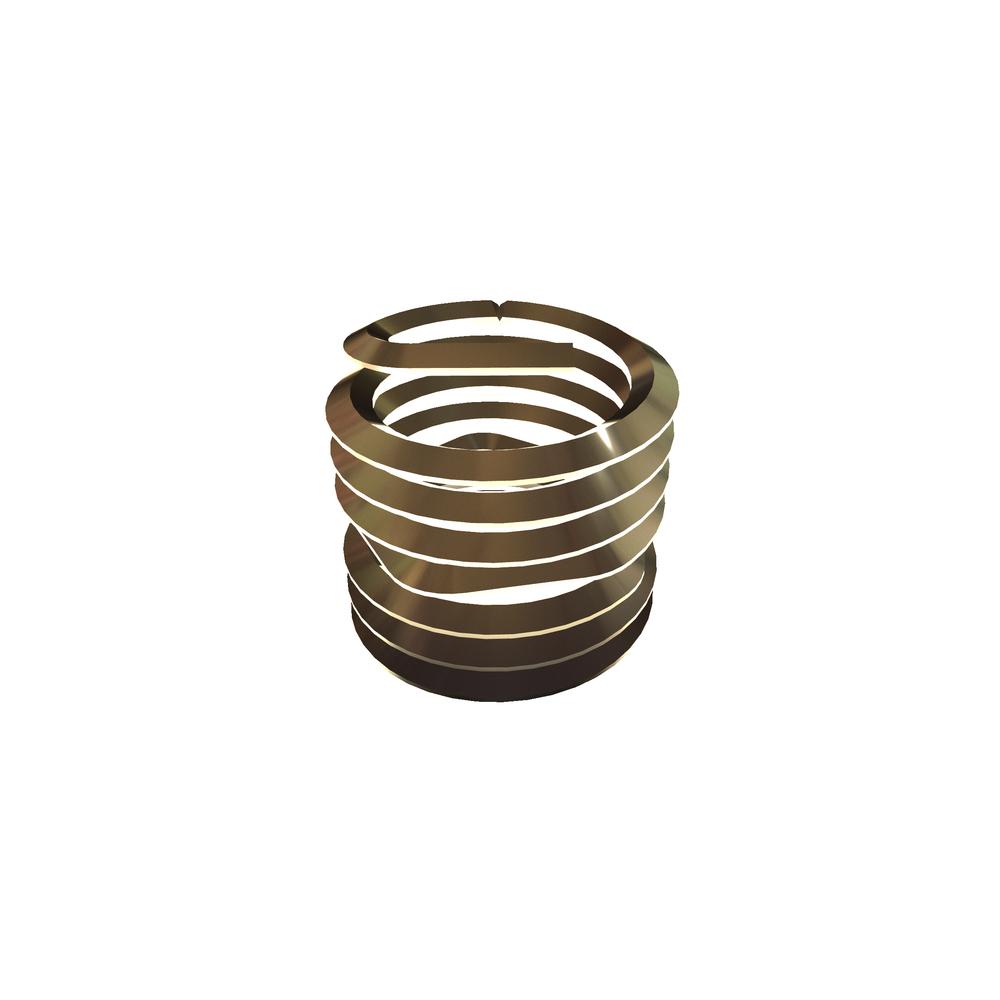

7/16-14 LKG HELI-COIL STUD LOK INS RoHS
3758-7CN875
| Item Id | 3758-7CN875 |
| Description | 7/16-14 LKG HELI-COIL STUD LOK INS RoHS |
| Extended Description | 7/16-14 Locking Helicoil STUD LOK Insert |
| Packaging | EA |
| Brand | HELICOIL/STANLEY |
| Finish | Plain |
| Free Coil Diameter (Max.) | 0.526in |
| Free Coil Diameter (Min.) | 0.551in |
| Insert Type | Stud-Lock Inserts |
| Locking Torque (Max.) | 300lbf-in |
| Material | 304 Stainless Steel |
| Min. Breakaway Torque | 175lbf-in |
| No. of Sides per Grip Coil | 6 |
| Nominal Diameter | 0.438in |
| Number of Coils | 10 1/4 |
| Number of Coils From End Insert | 5 1/8 |
| Number of Grip Coils | 1 |
| Thread Size | 7/16-14 |
| Thread Type | Unified Coarse Thread (UNC) |
| Type | Screw-lock Inserts (internal-lock) |
| Units | Inch |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
