3758-8CN1000
1/2-13 LKG HELI STUD LOK INS
Alternate Codes: N/A

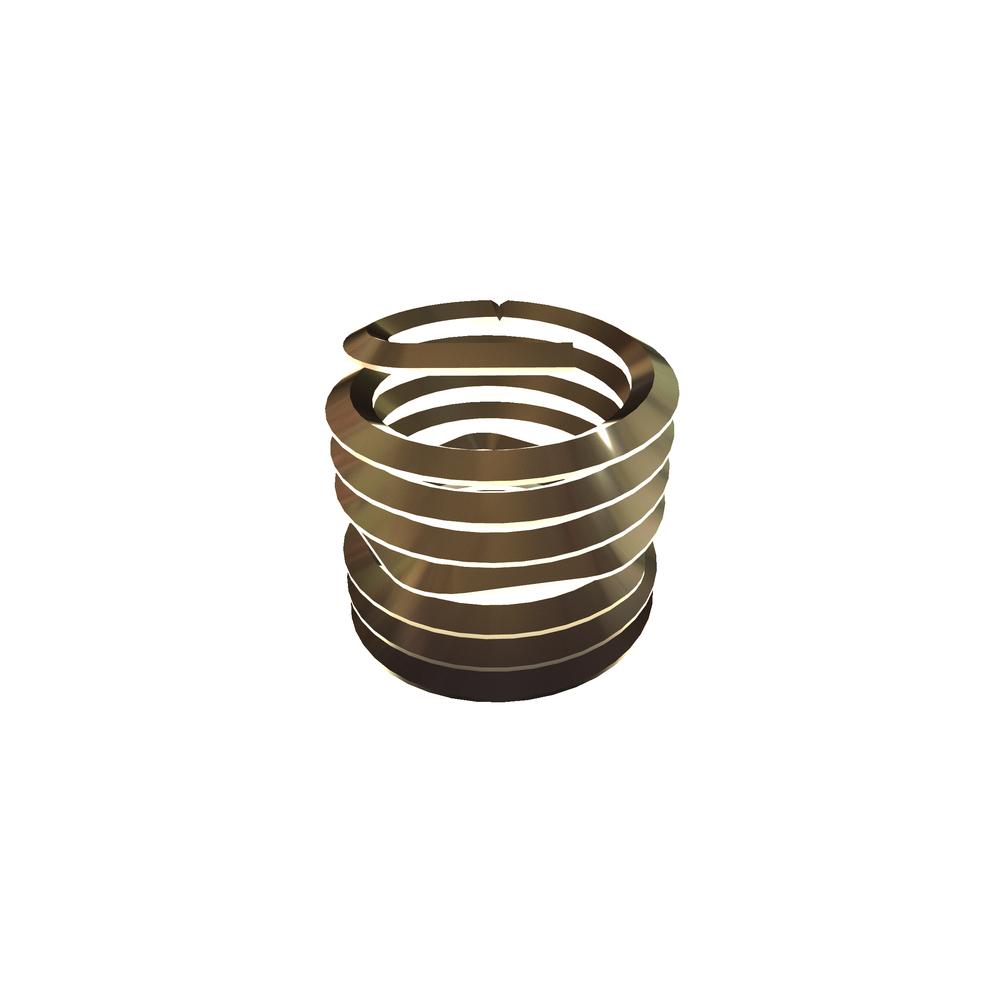

1/2-13 Locking Helicoil STUD LOK Insert
Pricing per Unit
| 1-99 pcs |
|---|
| $0.429 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
| Thread Size | 1/2-13 |
| Material | 304 Stainless Steel |
| Finish | Plain |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.500in |
| Free Coil Diameter (Min.) | 0.622in |
| Free Coil Diameter (Max.) | 0.597in |
| Insert Type | Stud-Lock Inserts |
| Number of Coils | 11 |
| No. of Sides per Grip Coil | 6 |
| Number of Grip Coils | 1 |
| Number of Coils From End Insert | 5 1/2 |
| Min. Breakaway Torque | 260lbf-in |
| Locking Torque (Max.) | 450lbf-in |
| Brand | HELICOIL/STANLEY |
| Type | Screw-lock Inserts (internal-lock) |
