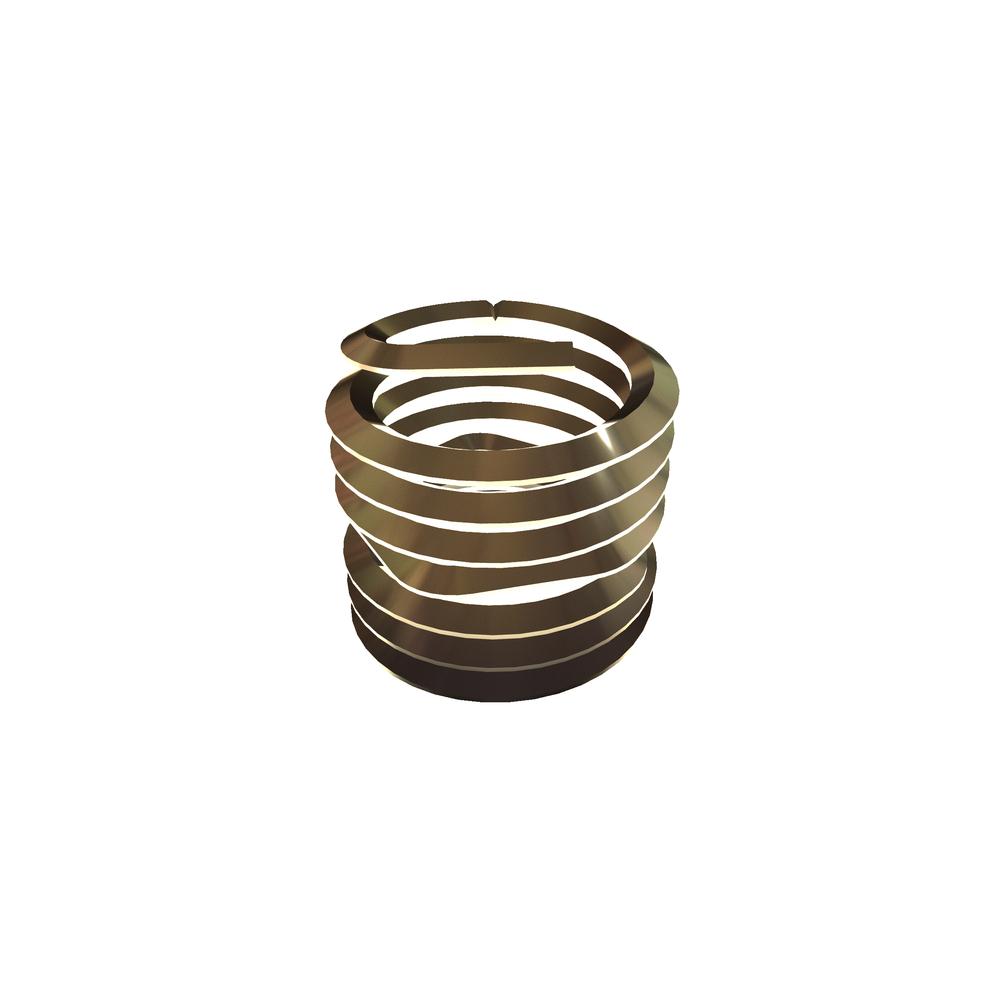

10-32 HELI-COIL STUD LOK INS RoHS
3759-3CN285
| Item Id | 3759-3CN285 |
| Description | 10-32 HELI-COIL STUD LOK INS RoHS |
| Extended Description | 10-32 Helicoil STUD LOK Insert |
| Packaging | EA |
| Brand | HELICOIL/STANLEY |
| Finish | Plain |
| Free Coil Diameter (Max.) | 0.236in |
| Free Coil Diameter (Min.) | 0.256in |
| Insert Type | Stud-Lock Inserts |
| Locking Torque (Max.) | 45lbf-in |
| Material | 304 Stainless Steel |
| Min. Breakaway Torque | 23lbf-in |
| No. of Sides per Grip Coil | 5 |
| Nominal Diameter | 0.190in |
| Number of Coils | 6 7/8 |
| Number of Coils From End Insert | 3 7/16 |
| Number of Grip Coils | 1 |
| Thread Size | 10-32 |
| Thread Type | Unified Fine Thread (UNF) |
| Type | Screw-lock Inserts (internal-lock) |
| Units | Inch |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
