3759-7CN875
7/16-20 LKG HELI STUD LOK INS
Alternate Codes: N/A

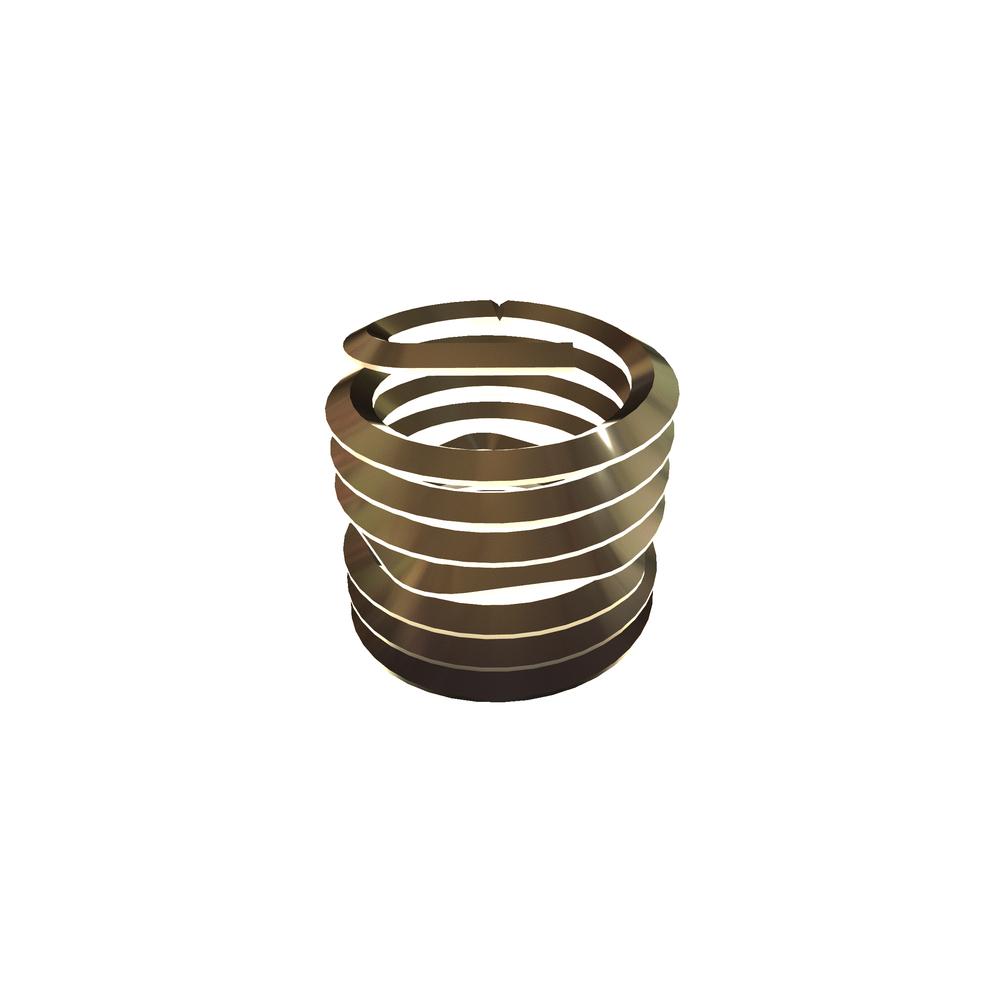

7/16-20 Locking Helicoil STUD LOK Insert
Pricing per Unit
| 1-99 pcs |
|---|
| $0.429 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
| Thread Size | 7/16-20 |
| Material | 304 Stainless Steel |
| Finish | Plain |
| Units | Inch |
| Thread Type | Unified Fine Thread (UNF) |
| Nominal Diameter | 0.438in |
| Free Coil Diameter (Min.) | 0.549in |
| Free Coil Diameter (Max.) | 0.524in |
| Insert Type | Stud-Lock Inserts |
| Number of Coils | 14 5/8 |
| No. of Sides per Grip Coil | 6 |
| Number of Grip Coils | 2 |
| Number of Coils From End Insert | 7 5/16 |
| Min. Breakaway Torque | 175lbf-in |
| Locking Torque (Max.) | 300lbf-in |
| Brand | HELICOIL/STANLEY |
| Type | Screw-lock Inserts (internal-lock) |
