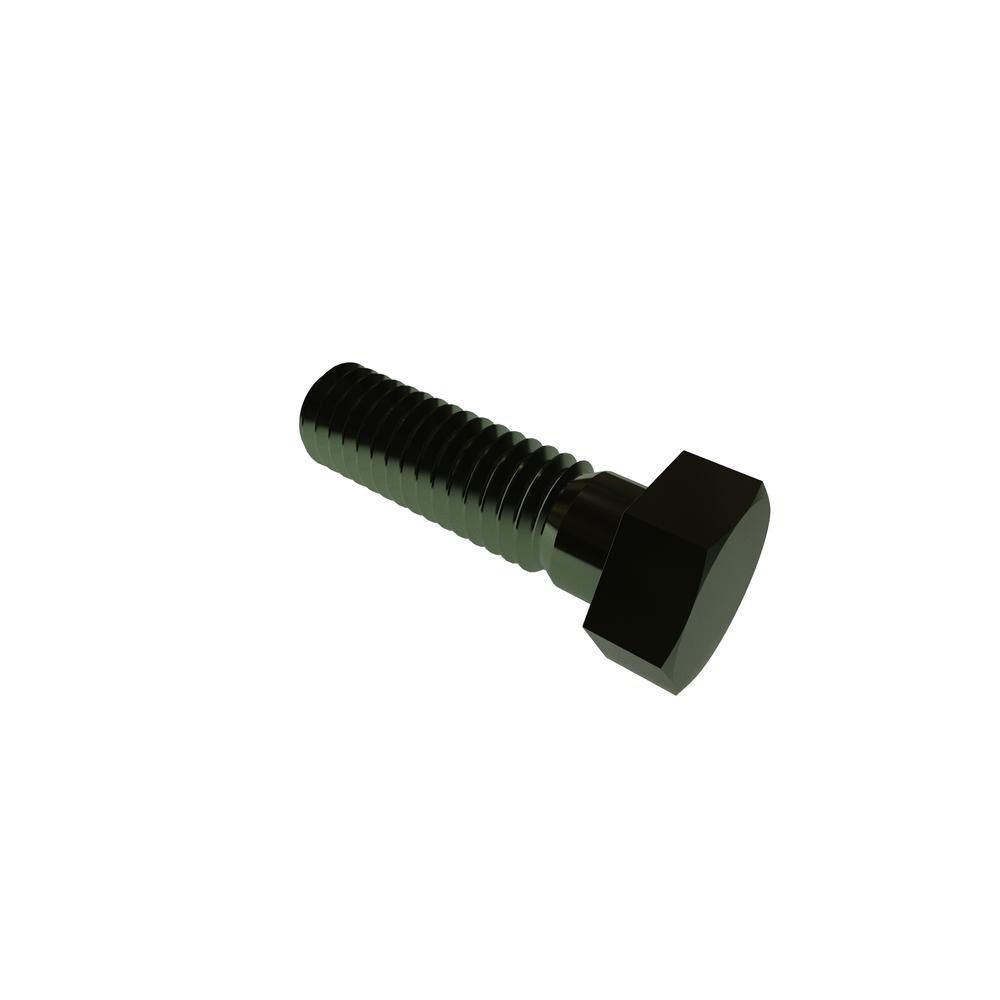

3/8-16 X 1 1/4 HX HD GR 5 ZN CR3
37C125HHD5R
| Item Id | 37C125HHD5R |
| Description | 3/8-16 X 1 1/4 HX HD GR5 ZN RoHS |
| Alternate Codes | 40095 |
| Extended Description | 3/8-16 X 1 1/4 Hex Head Grade 5 steel Zinc plate RoHS3 |
| Packaging | EA |
| Additional Industry Cross Reference | 92865A626 |
| Body Diameter (Max.) | 0.388in |
| Body Diameter (Min.) | 0.360in |
| Brand | VARIED |
| Finish | Zinc Cr3 |
| Grade | 5 |
| Head Height (Max.) | 0.268in |
| Head Height (Min.) | 0.226in |
| Head Type | Hex |
| Length | 1.25in |
| Material | Steel |
| Meets (Standard) | ASME B18.2.1 |
| Nominal Thread Size | 0.375in |
| RoHS | Compliant |
| Thread Size | 3/8-16 |
| Thread Type | Unified Coarse Thread (UNC) |
| Units | Inch |
| Width Across Flat (Max.) | 0.562in |
| Width Across Flat (Min.) | 0.544in |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
