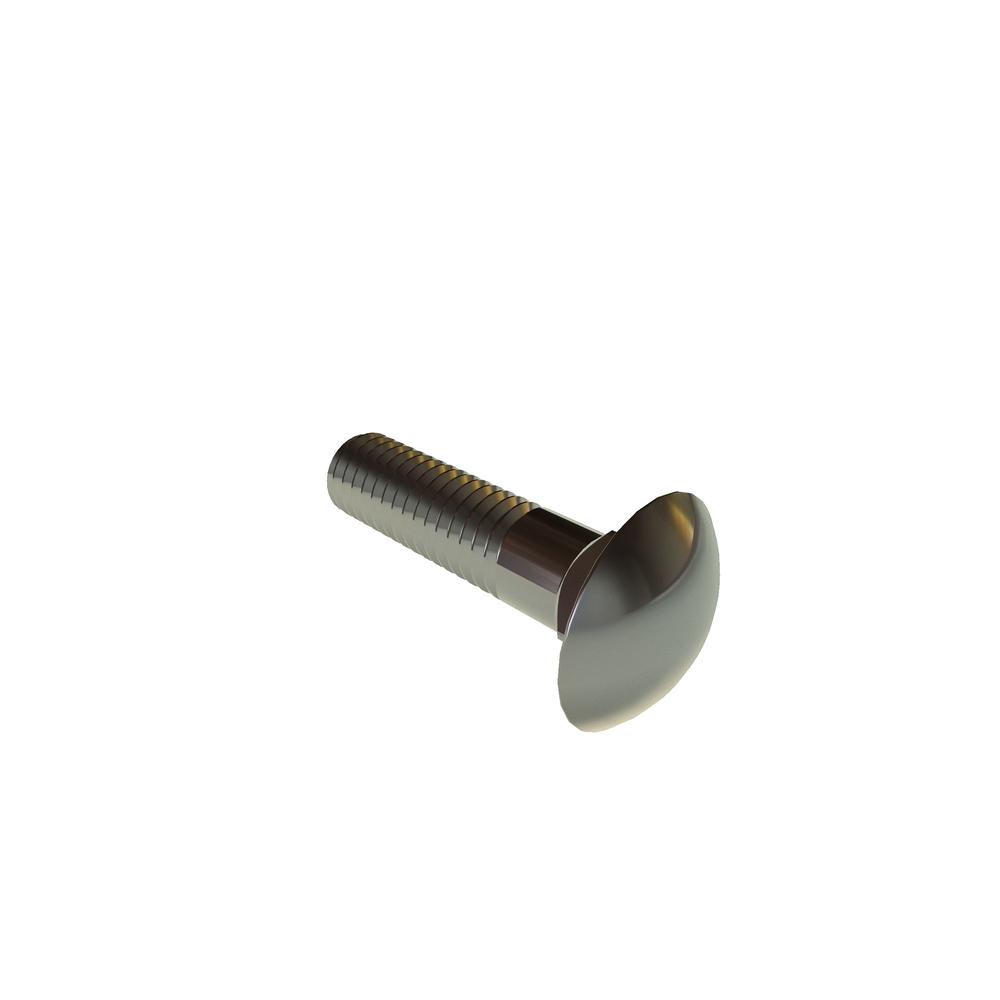

37C150CARS
3/8-16 X 1 1/2 CARRIAGE BOLT SST RoHS
Alternate Codes: 406-08675-00, 92356A628
3/8-16 X 1 1/2 CARRIAGE BOLT Stainless Steel RoHS3
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | Call For |
|---|---|---|---|---|---|
| $1.036 | $0.659 | $0.605 | $0.558 | $0.471 | Larger Quantities |
In Stock
| Thread Size | 3/8-16 |
| Material | Stainless Steel |
| Finish | Plain |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.375in |
| Body Diameter (Min.) | 0.329in |
| Grade | Other |
| Corner radius | 0.047in |
| Square Depth (Min.) | 0.188in |
| Square Depth (Max.) | 0.219in |
| Square Width (Min.) | 0.368in |
| Square Width (Max.) | 0.388in |
| Fillet Radius | 0.031in |
| Brand | VARIED |
| Type | Carriage Bolt |
| Additional Industry Cross Reference | 92356A628 |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.5 |
| Body Diameter (Max.) | 0.388in |
| Head Diameter (Max.) | 0.844in |
| Head Diameter (Min.) | 0.782in |
| Head Height (Max.) | 0.208in |
| Head Height (Min.) | 0.188in |
| Thread Length | 1.000in |
| Total Length | 1.50in |
