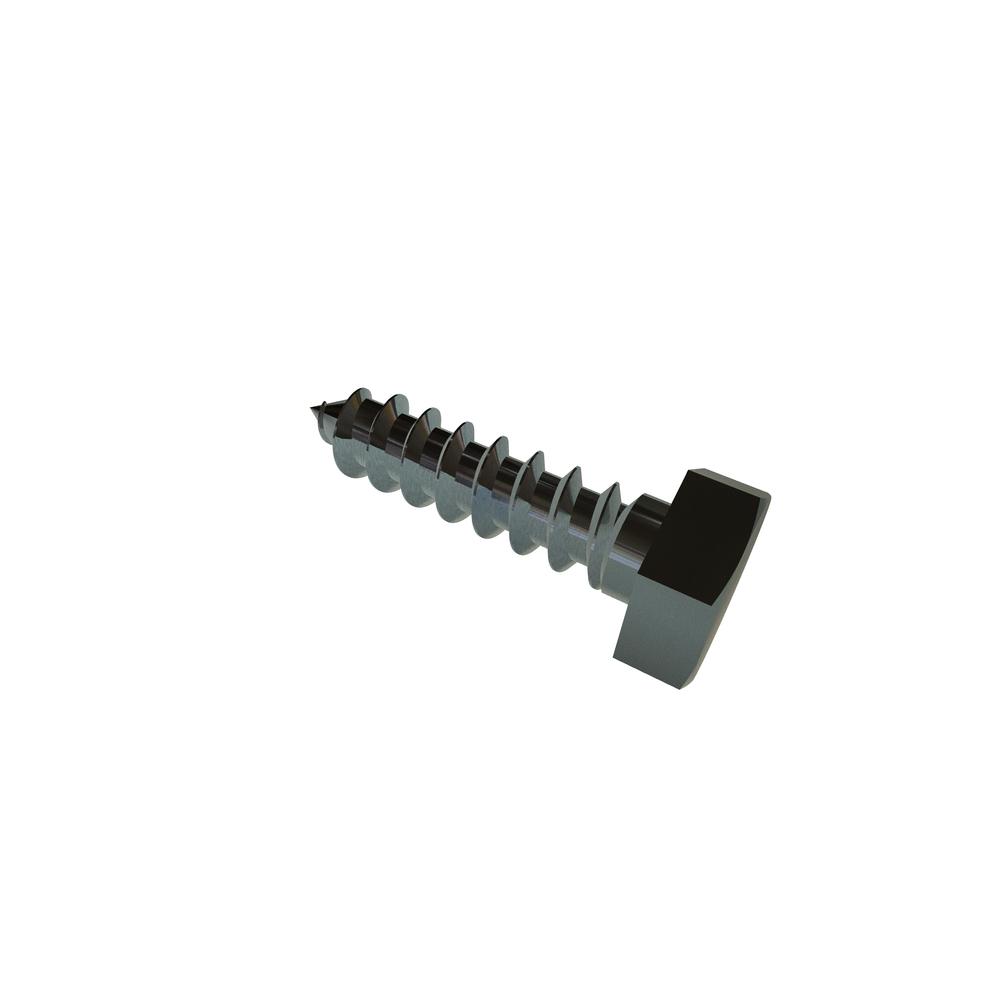

3/8-7 X 3 HX HD LAG BOLT STL ZN RoHS
37N300HHLZR
| Item Id | 37N300HHLZR |
| Description | 3/8-7 X 3 HX HD LAG BOLT STL ZN RoHS |
| Alternate Codes | 91478A636 |
| Extended Description | 3/8-7 X 3 Hex Head LAG BOLT Steel Zinc plate RoHS3 |
| Packaging | EA |
| Additional Industry Cross Reference | 91478A636 |
| Body Diameter (Max.) | 0.388in |
| Body Diameter (Min.) | 0.360in |
| Brand | VARIED |
| Finish | Zinc Cr3 |
| Grade | Other |
| Head Height (Max.) | 0.268in |
| Head Height (Min.) | 0.226in |
| Length | 3.00in |
| Material | Steel |
| Meets (Standard) | ASME-B18.2.1 |
| Nominal Diameter | 0.375in |
| Point Type | Gimlet Point |
| RoHS | Compliant |
| Thread Size | 3/8-7 |
| Type | Lag Bolts |
| Units | Inch |
| Width Across Flat (Max.) | 0.562in |
| Width Across Flat (Min.) | 0.544in |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
