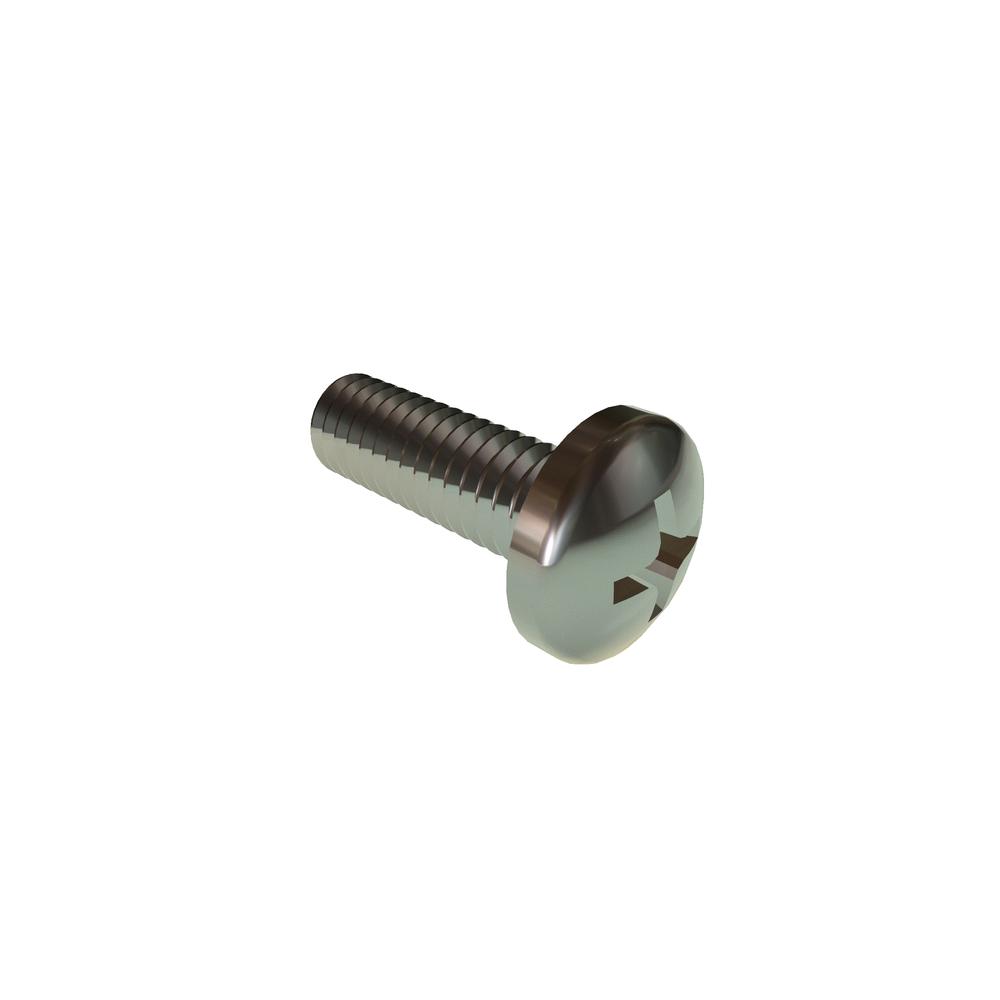

3F31PPMS
3-56 X 5/16 PH PAN SST RoHS
Alternate Codes: N/A
Pricing per Unit
| 1-249 pcs | 250-499 pcs |
|---|---|
| $0.173 | $0.104 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
| Thread Size | 3-56 |
| Material | Stainless Steel |
| Finish | Plain |
| Units | Inch |
| Thread Type | Unified Fine Thread (UNF) |
| Nominal Diameter | 0.099in |
| Head Type | Pan |
| Drive Type | Phillips |
| Drive Size | 1 |
| Recess Diameter | 0.105in |
| Head Radius (Min.) | 0.010in |
| Recess Depth (Min.) | 0.043in |
| Recess Depth (Max.) | 0.061in |
| Brand | VARIED |
| Additional Industry Cross Reference | 91772A032 |
| Length | 0.31in |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.193in |
| Head Diameter (Min.) | 0.180in |
| Head Height (Max.) | 0.071in |
| Head Height (Min.) | 0.062in |
