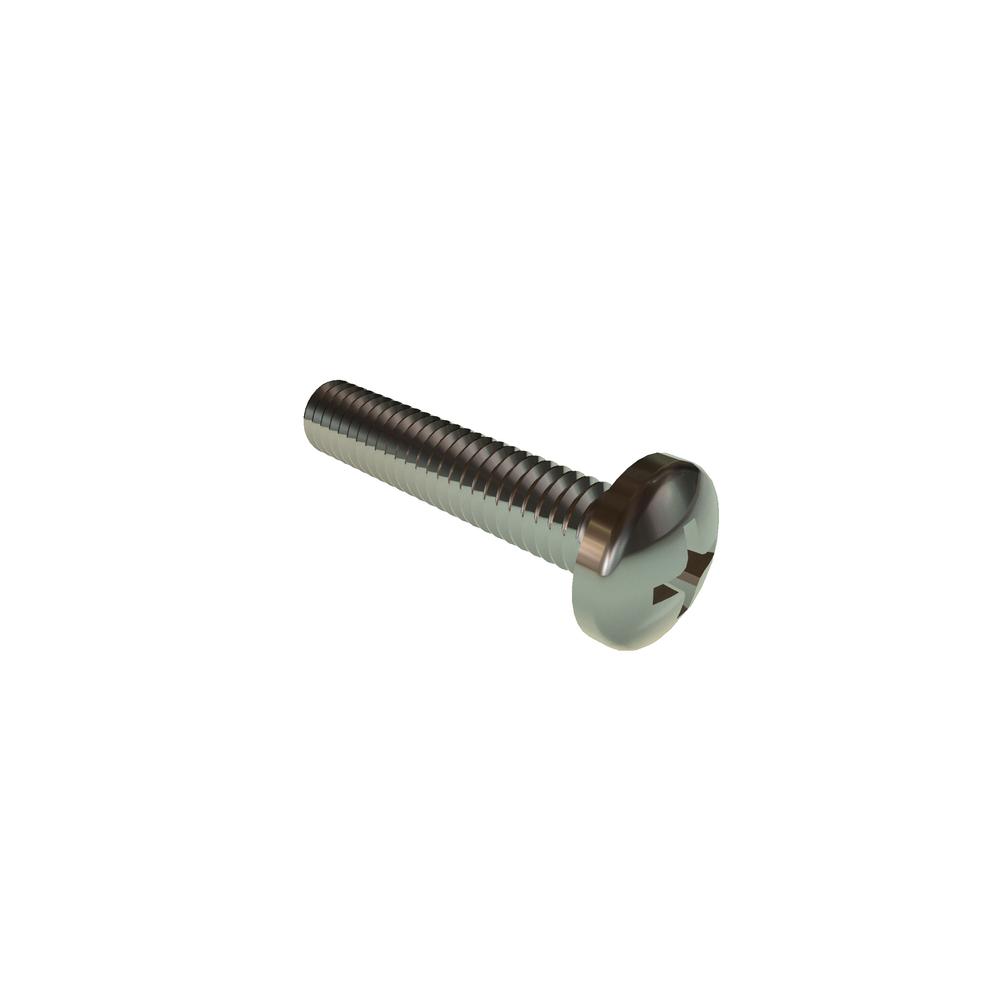

3-56 X 1/2 PH PAN SST RoHS
3F50PPMS
| Item Id | 3F50PPMS |
| Description | 3-56 X 1/2 PHIL PAN SST RoHS |
| Extended Description | |
| Packaging | EA |
| Additional Industry Cross Reference | 91772A053 |
| Brand | VARIED |
| Drive Size | 1 |
| Drive Type | Phillips |
| Finish | Plain |
| Head Diameter (Max.) | 0.193in |
| Head Diameter (Min.) | 0.180in |
| Head Height (Max.) | 0.071in |
| Head Height (Min.) | 0.062in |
| Head Radius (Min.) | 0.010in |
| Head Type | Pan |
| Length | 0.50in |
| Material | Stainless Steel |
| Meets (Standard) | ASME B18.6.3 |
| Nominal Diameter | 0.099in |
| Recess Depth (Max.) | 0.061in |
| Recess Depth (Min.) | 0.043in |
| Recess Diameter | 0.105in |
| RoHS | Compliant |
| Thread Size | 3-56 |
| Thread Type | Unified Fine Thread (UNF) |
| Units | Inch |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
