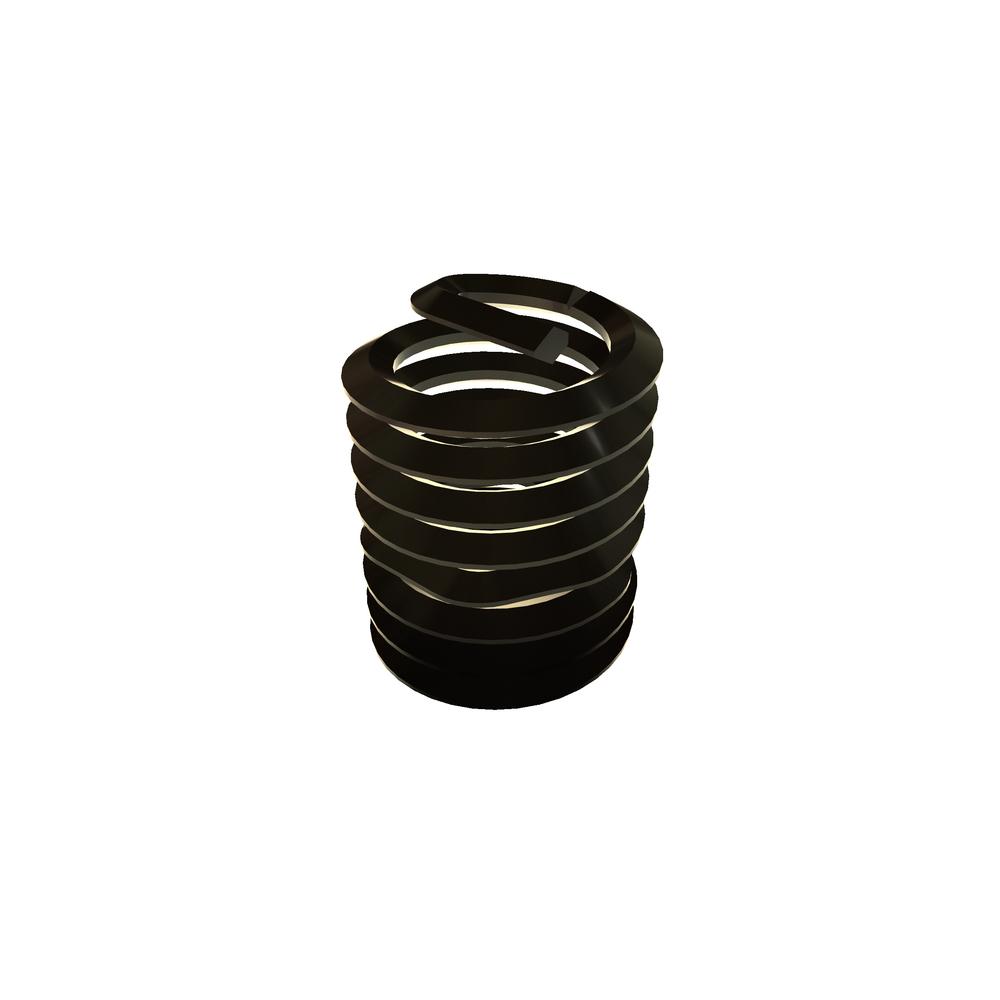

4184-3CN030S
M3-.5 LKG HELI INS S/F
Alternate Codes: MA3329-102
RoHS
Pricing per Unit
| 1-49 pcs | 50-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs |
|---|---|---|---|---|
| $1.470 | $1.176 | $0.905 | $0.795 | $0.717 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
| Thread Size | M3x0.5 |
| Material | 304 Stainless Steel |
| Finish | Plain |
| Units | Metric |
| Thread Type | Metric Coarse |
| Nominal Diameter | 3.00 mm |
| Free Coil Diameter (Min.) | 3.80 mm |
| Free Coil Diameter (Max.) | 4.35 mm |
| Insert Type | Standard Wire Inserts |
| Number of Coils | 3 3/4 |
| Packaging | Strip Feed |
| No. of Sides per Grip Coil | 2 |
| Number of Grip Coils | 2 |
| Number of Coils From End Insert | 1 7/8 |
| Brand | HELICOIL/STANLEY |
| Type | Screw-lock Inserts (internal-lock) |
| RoHS | Compliant |
