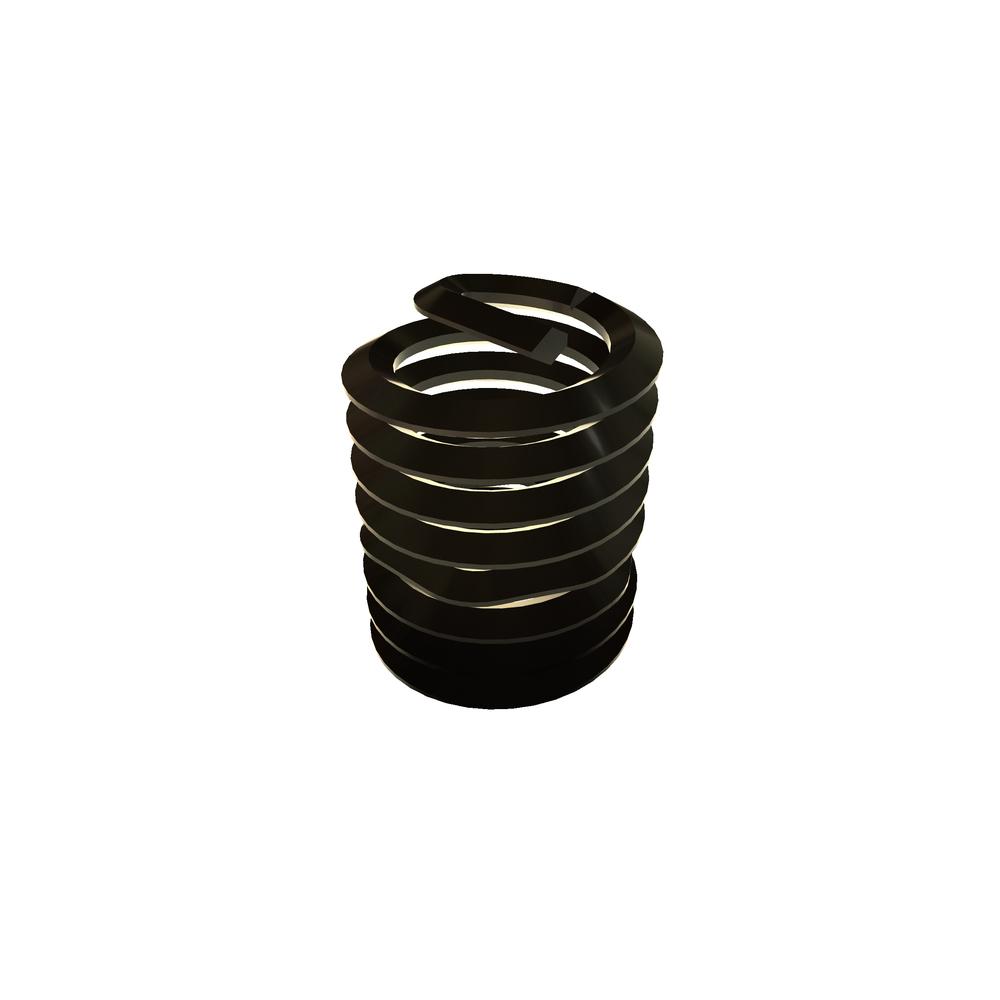

4184-3CN060
M3-.5 LKG HELI INS
Alternate Codes: MA3329-202
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | Call For |
|---|---|---|---|---|---|
| $1.498 | $0.953 | $0.875 | $0.807 | $0.681 | Larger Quantities |
In Stock
| Thread Size | M3x0.5 |
| Material | 304 Stainless Steel |
| Finish | Plain |
| Units | Metric |
| Thread Type | Metric Coarse |
| Nominal Diameter | 3.00 mm |
| Free Coil Diameter (Min.) | 3.80 mm |
| Free Coil Diameter (Max.) | 4.35 mm |
| Insert Type | Standard Wire Inserts |
| Number of Coils | 8 7/8 |
| Packaging | Bulk |
| No. of Sides per Grip Coil | 2 |
| Number of Grip Coils | 2 |
| Number of Coils From End Insert | 4 7/16 |
| Brand | HELICOIL/STANLEY |
| Type | Screw-lock Inserts (internal-lock) |
| Additional Industry Cross Reference | 90296A404 |
| RoHS | Compliant |
