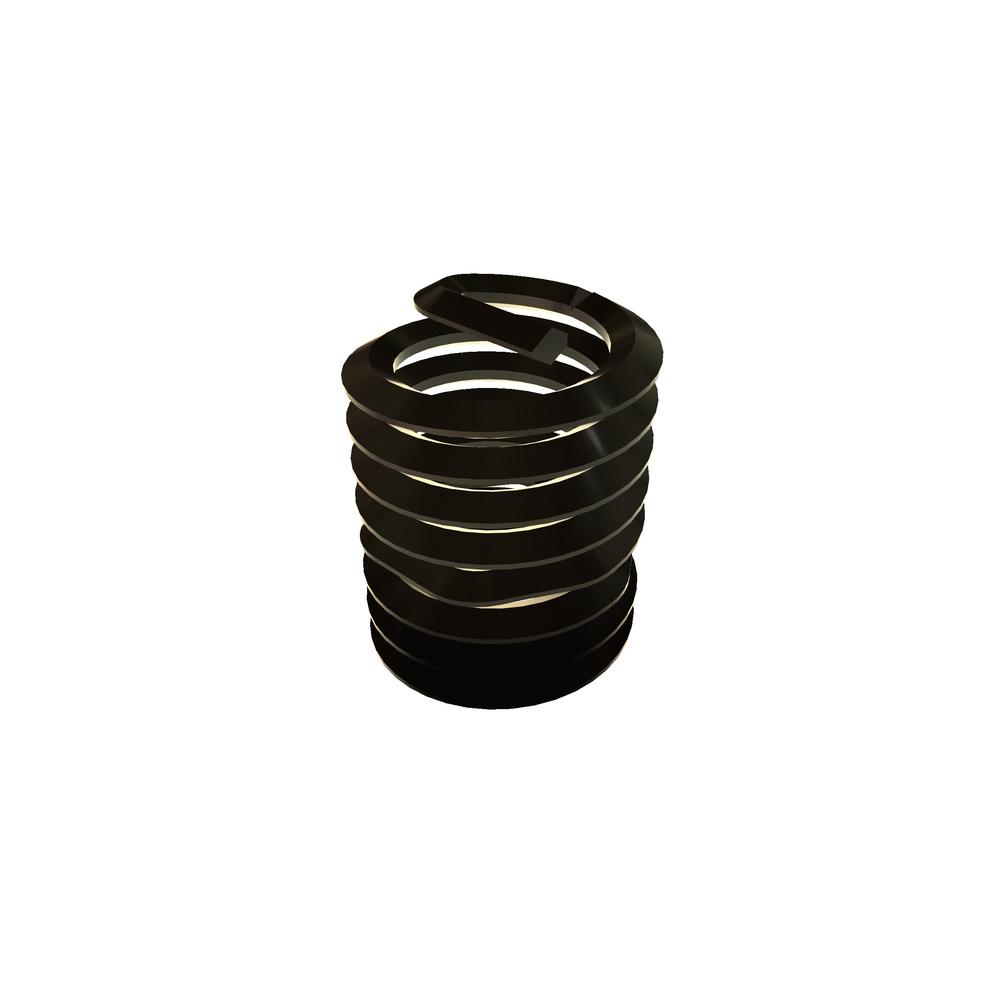

4184-5CN125
M5 -.8 LKG HELI-COIL INS RoHS
Alternate Codes: MA3329-255
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
Out of stock
| Thread Size | M5x0.8 |
| Material | 304 Stainless Steel |
| Finish | Plain |
| Units | Metric |
| Thread Type | Metric Coarse |
| Nominal Diameter | 5.00 mm |
| Free Coil Diameter (Min.) | 6.25 mm |
| Free Coil Diameter (Max.) | 6.80 mm |
| Insert Type | Standard Wire Inserts |
| Number of Coils | 12 3/8 |
| Packaging | Bulk |
| No. of Sides per Grip Coil | 1 2/3 |
| Number of Grip Coils | 1 2/3 |
| Number of Coils From End Insert | 7 9/16 |
| Brand | HELICOIL/STANLEY |
| Type | Screw-lock Inserts (internal-lock) |
| Additional Industry Cross Reference | 90296A305 |
| RoHS | Compliant |
