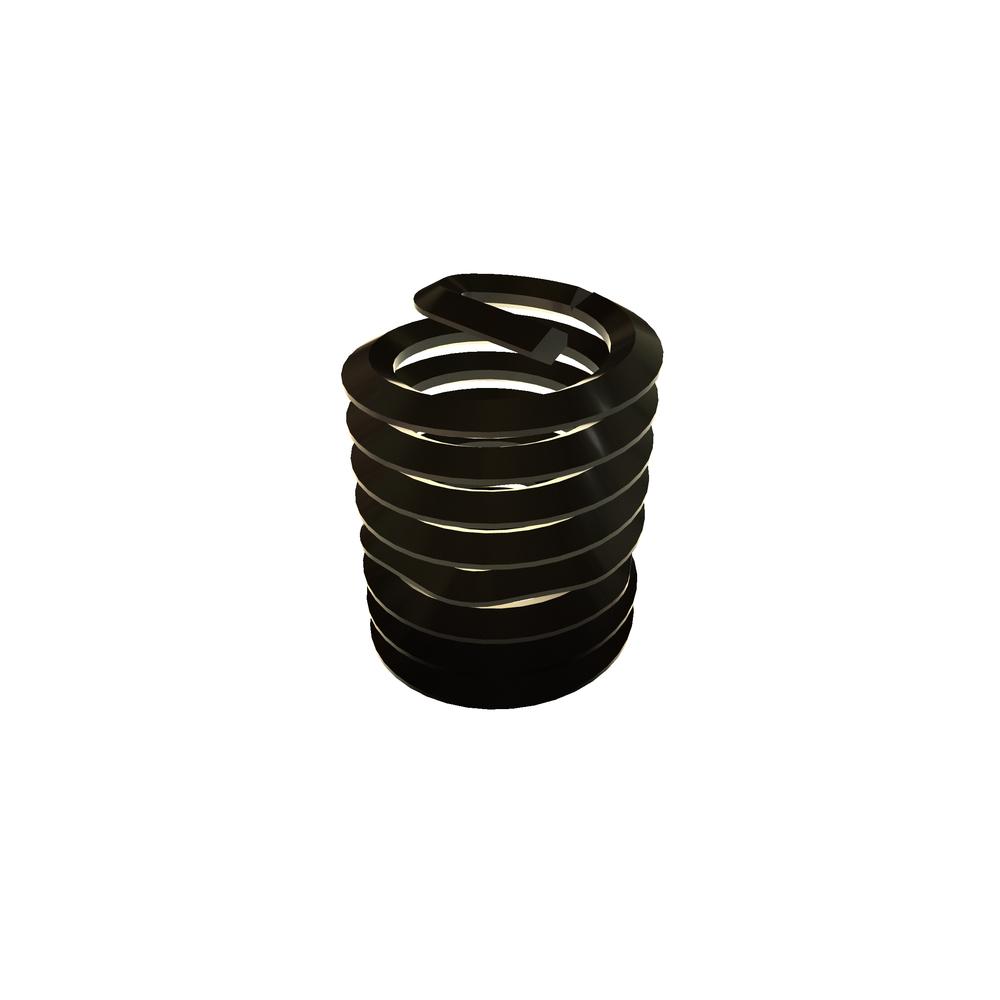

4184-8CN200
M8-1.25 LKG HELI INS
Alternate Codes: MA3329-259
Pricing per Unit
| 1-49 pcs | 50-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | Call For |
|---|---|---|---|---|---|
| $1.490 | $1.192 | $0.917 | $0.805 | $0.727 | Larger Quantities |
In Stock
| Thread Size | M8x1.25 |
| Material | 304 Stainless Steel |
| Finish | Plain |
| Thread Type | Metric Coarse |
| Nominal Diameter | 8.00 mm |
| Free Coil Diameter (Min.) | 9.80 mm |
| Free Coil Diameter (Max.) | 10.35 mm |
| Insert Type | Standard Wire Inserts |
| Number of Coils | 13 1/4 |
| Packaging | Bulk |
| No. of Sides per Grip Coil | 1 1/5 |
| Number of Grip Coils | 1 1/5 |
| Number of Coils From End Insert | 8 1/8 |
| Brand | HELICOIL/STANLEY |
| Type | Screw-lock Inserts (internal-lock) |
| Additional Industry Cross Reference | 90296A320 |
| RoHS | Compliant |
