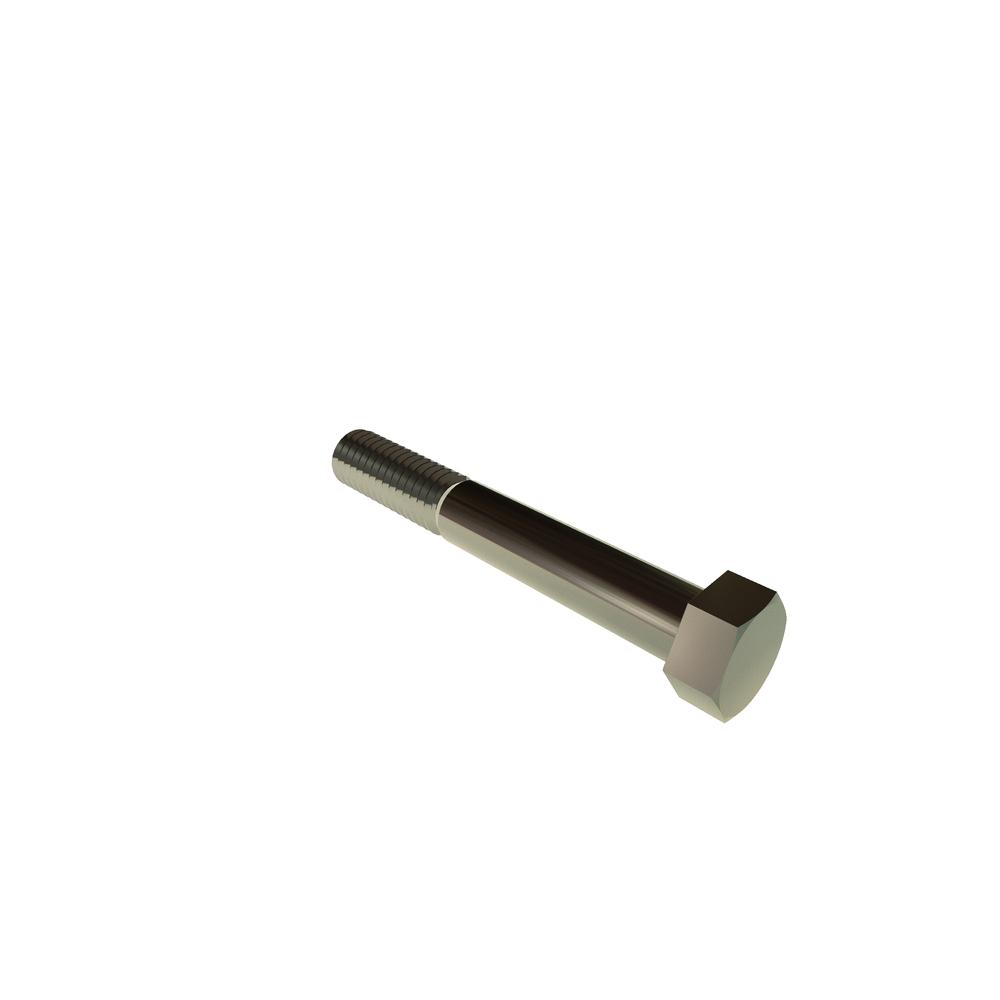

43C300HHDS
7/16-14 X 3 HX HD SST RoHS
Alternate Codes: N/A
7/16-14 X 3 Hex Head Stainless Steel RoHS3
Pricing per Unit
| 1-49 pcs | 50-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | Call For |
|---|---|---|---|---|---|
| $3.201 | $2.462 | $2.001 | $1.779 | $1.601 | Larger Quantities |
In Stock
| Thread Size | 7/16-14 |
| Material | Stainless Steel |
| Finish | Plain |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Head Type | Hex |
| Body Diameter (Min.) | 0.421in |
| Nominal Thread Size | 0.438in |
| Grade | Other |
| Brand | VARIED |
| Additional Industry Cross Reference | 92198A681 |
| Length | 3.00in |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.2.1 |
| Body Diameter (Max.) | 0.452in |
| Head Height (Max.) | 0.316in |
| Head Height (Min.) | 0.272in |
| Width Across Flat (Max.) | 0.625in |
| Width Across Flat (Min.) | 0.603in |
