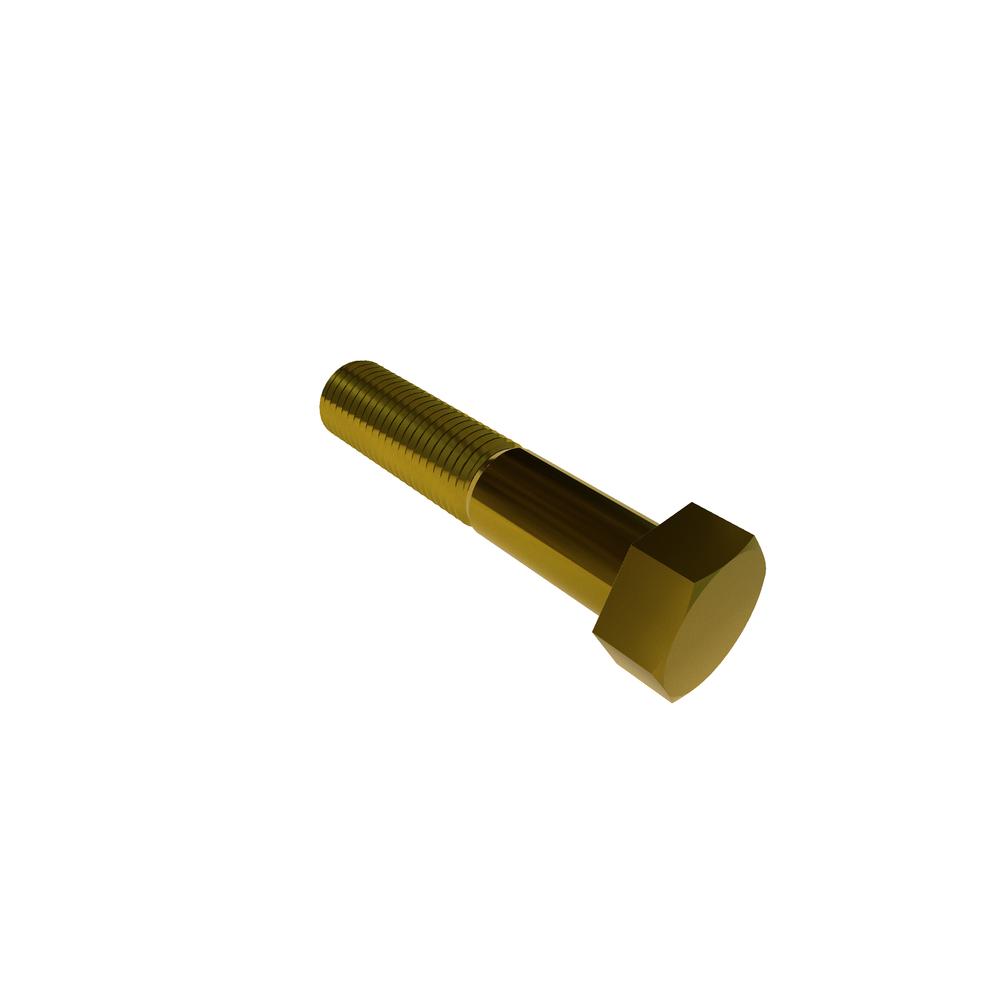

43F200HHD8/Y-NONROHS
7/16-20 X 2 HX HD GR 8 ZN YLW RoHS
Alternate Codes: 43F200HHD8/Y
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
Out of stock
| Thread Size | 7/16-20 |
| Material | Alloy Steel |
| Finish | Zinc Yellow |
| Units | Inch |
| Thread Type | Unified Fine Thread (UNF) |
| Head Type | Hex |
| Body Diameter (Min.) | 0.421in |
| Nominal Thread Size | 0.438in |
| Grade | 8 |
| Brand | VARIED |
| Additional Industry Cross Reference | 91257A701 |
| Length | 2.00in |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.2.1 |
| Body Diameter (Max.) | 0.452in |
| Head Height (Max.) | 0.316in |
| Head Height (Min.) | 0.272in |
| Width Across Flat (Max.) | 0.625in |
| Width Across Flat (Min.) | 0.603in |
