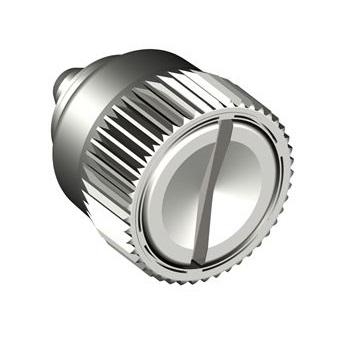

SOUTHCO RETRACT SCR ASSY RoHS
47-10-602-10
| Item Id | 47-10-602-10 |
| Description | SOUTHCO RETRACT SCR ASSY RoHS |
| Extended Description | |
| Packaging | EA |
| Brand | SOUTHCO |
| Counter Bore Depth | 0.4 mm |
| Drive Type | Slotted |
| Ferrule Finish | Natural |
| Ferrule Material | Aluminum |
| Finish | Natural |
| Flange Length | 1.80 mm |
| Installation Type | Flare In Style |
| Knob Diameter | 14.7 mm |
| Knob Finish | Natural |
| Knob Height-Fastened | 12.70 mm |
| Knob Height-Unfastened | 19.30 mm |
| Knob Material | Aluminum |
| Material | Aluminium |
| Panel Thickness (Max.) | 3.20 mm |
| Panel Thickness (Min.) | 1.50 mm |
| Screw Projection (Max.) | 7.80 mm |
| Screw Projection (Min.) | 1.20 mm |
| Thread Size | 4-40 |
| Total Float | 0.90 mm |
| Type | Retract Screw |
| Units | Inch |
