4C100PFHSB

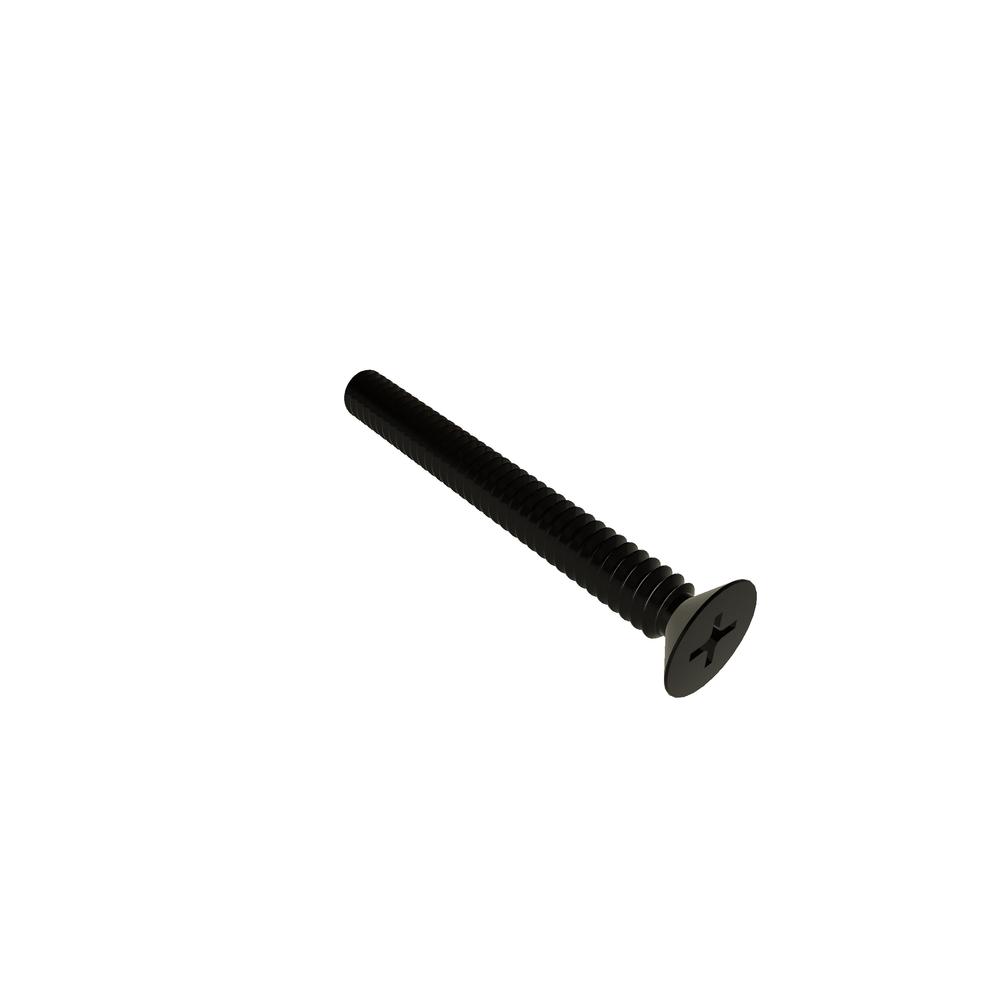

4-40 X 1 PHIL FLAT 100 DEG SST RoHS BLK
Alternate Codes: N/A
RoHS
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs |
|---|---|---|---|---|
| $0.212 | $0.112 | $0.088 | $0.082 | $0.068 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
| Thread Size | 4-40 |
| Material | Stainless Steel |
| Finish | Black Oxide |
| Units | Inch |
| Drive Type | Phillips |
| Drive Size | 1 |
| Recess Diameter | 0.110in |
| Nominal Thread Size | 0.112in |
| Head Height | 0.049in |
| Recess Depth (Min.) | 0.055in |
| Recess Depth (Max.) | 0.071in |
| Brand | VARIED |
| Type | Flat Head 100 Degree |
| Length | 1.00in |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.212in |
| Head Diameter (Min.) | 0.188in |
