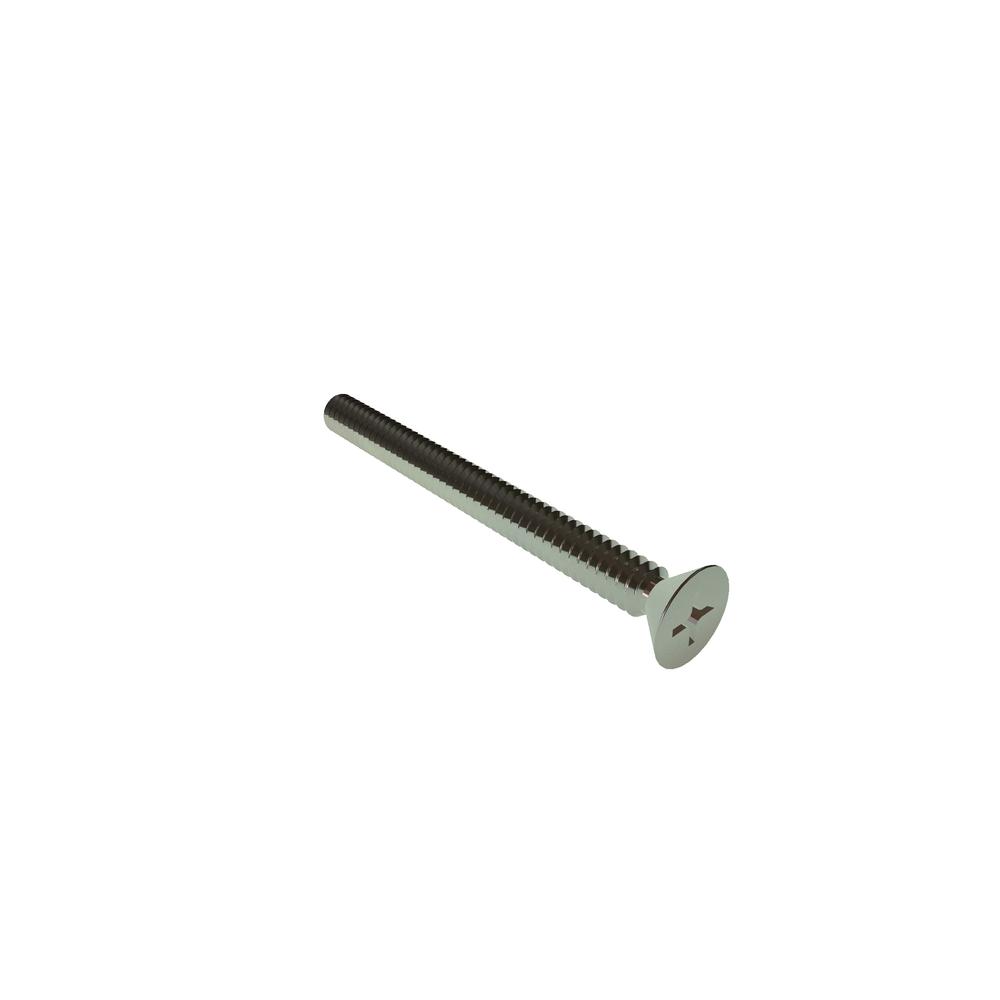

4C125PFMS
4-40 X 1 1/4 PHIL FLAT SST RoHS
Alternate Codes: 12-212004-22, MS51959-22
Pricing per Unit
| 1-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | 2500-4999 pcs | Call For |
|---|---|---|---|---|---|
| $0.117 | $0.070 | $0.058 | $0.048 | $0.042 | Larger Quantities |
In Stock
| Thread Size | 4-40 |
| Material | Stainless Steel |
| Finish | Plain |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.112in |
| Head Type | Flat |
| Drive Type | Phillips |
| Drive Size | 1 |
| Recess Diameter | 0.122in |
| Head Height | 0.067in |
| Recess Depth (Min.) | 0.066in |
| Recess Depth (Max.) | 0.082in |
| Brand | VARIED |
| Additional Industry Cross Reference | 91771A117 |
| Length | 1.25in |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.212in |
| Head Diameter (Min.) | 0.191in |
