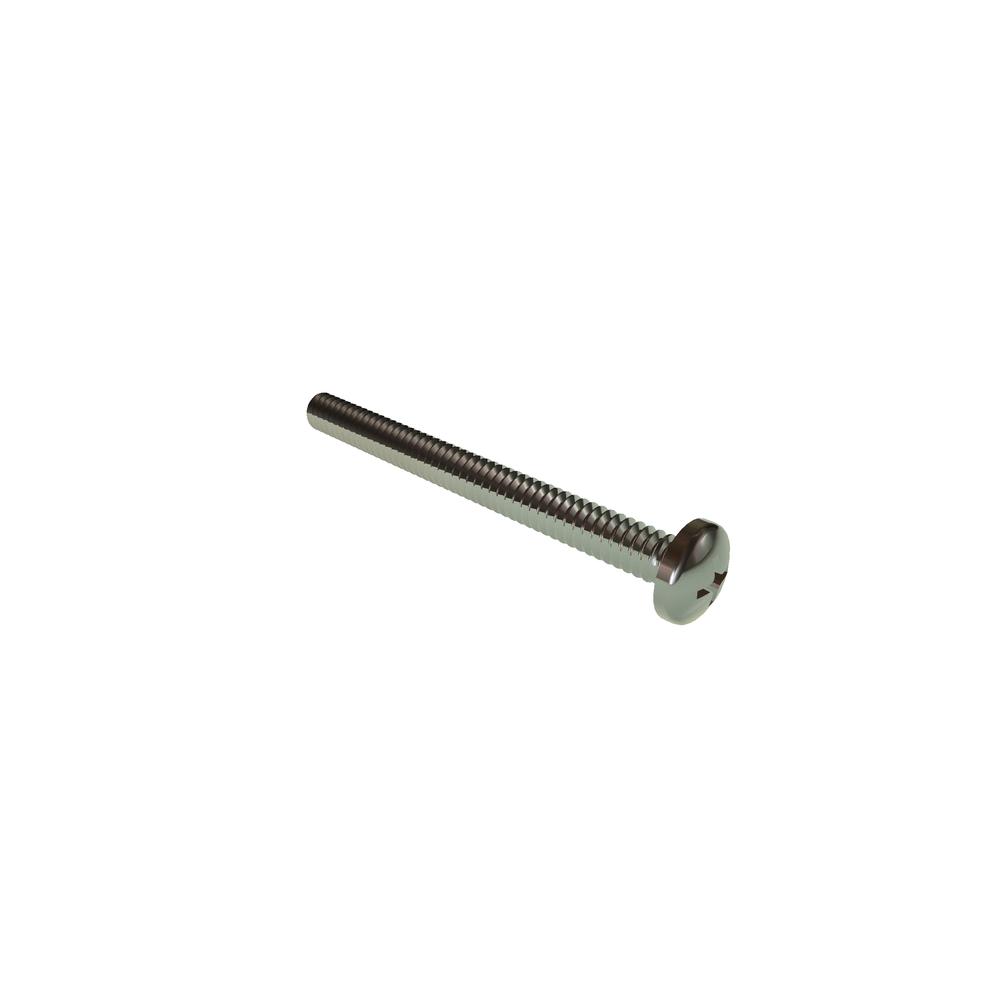

4-40 X 1 1/4 PHIL PAN SST RoHS
4C125PPMS
| Item Id | 4C125PPMS |
| Description | 4-40 X 1 1/4 PHIL PAN SST RoHS |
| Alternate Codes | 0212-12-0420, 10-1301, P3027 |
| Extended Description | |
| Packaging | EA |
| Additional Industry Cross Reference | 91772A116 |
| Brand | VARIED |
| Drive Size | 1 |
| Drive Type | Phillips |
| Finish | Plain |
| Head Diameter (Max.) | 0.219in |
| Head Diameter (Min.) | 0.205in |
| Head Height (Max.) | 0.080in |
| Head Height (Min.) | 0.070in |
| Head Radius (Min.) | 0.010in |
| Head Type | Pan |
| Length | 1.25in |
| Material | Stainless Steel |
| Meets (Standard) | ASME B18.6.3 |
| Nominal Diameter | 0.112in |
| Recess Depth (Max.) | 0.071in |
| Recess Depth (Min.) | 0.053in |
| Recess Diameter | 0.115in |
| RoHS | Compliant |
| Thread Size | 4-40 |
| Thread Type | Unified Coarse Thread (UNC) |
| Units | Inch |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
