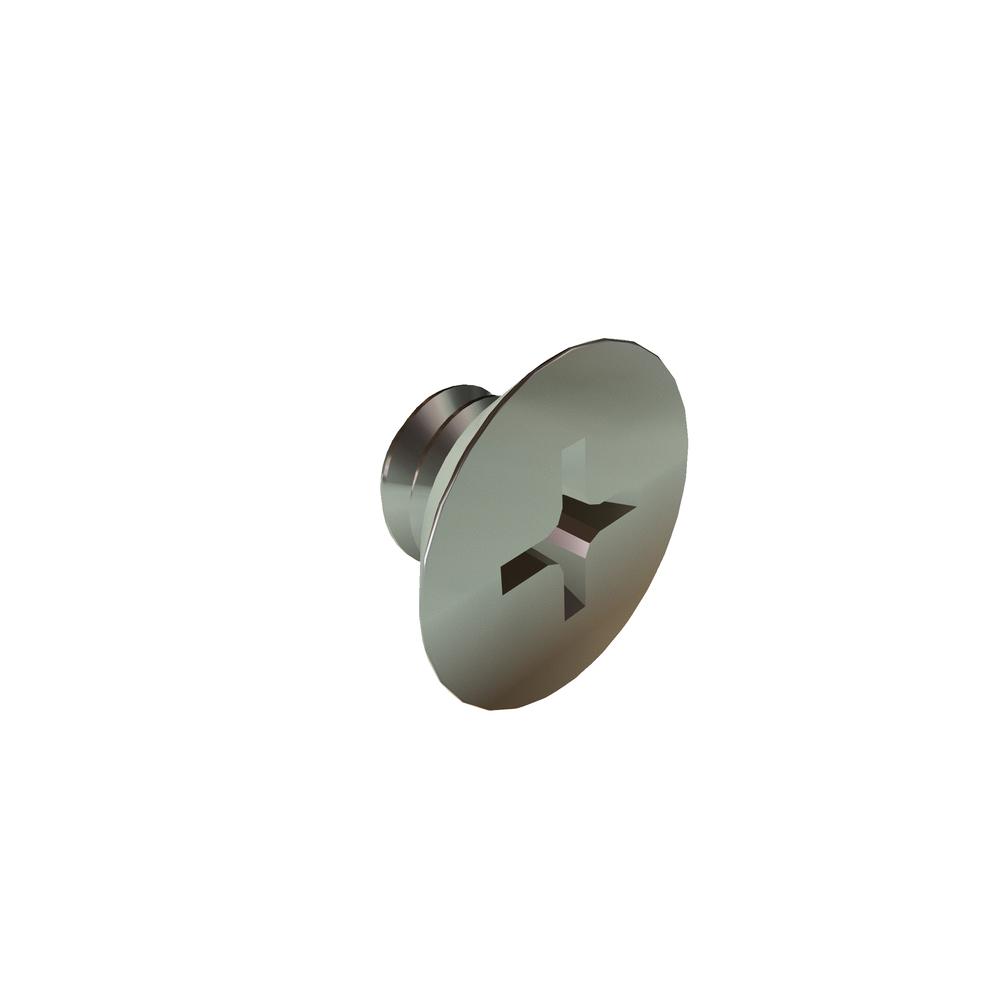

Image for reference purposes only. Actual product may vary.
4C12PFUS
4-40 X 1/8 PHIL FLAT U/C SST RoHS
Alternate Codes: 581922-02, 91771A103, MS51959-11
4-40 X 1/8 Phillips Flat Head Undercut Stainless Steel RoHS
Pricing per Unit
| 1-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | 2500-4999 pcs | Call For |
|---|---|---|---|---|---|
| $0.186 | $0.111 | $0.093 | $0.076 | $0.067 | Larger Quantities |
In Stock
Maximum stock already in cart
| Length | 0.12in |
| Thread Size | 4-40 |
| Finish | Plain |
| Material | Stainless Steel |
| Drive Type | Phillips |
| Head Height (Min.) | 0.038in |
| Head Height (Max.) | 0.047in |
| Drive Size | 1 |
| Recess Depth (Max.) | 0.071in |
| Additional Industry Cross Reference | 91771A103 |
| Recess Depth (Min.) | 0.055in |
| RoHS | Compliant |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.112in |
| Head Type | Flat Undercut |
| Recess Diameter | 0.110in |
| Brand | VARIED |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.212in |
| Head Diameter (Min.) | 0.191in |
