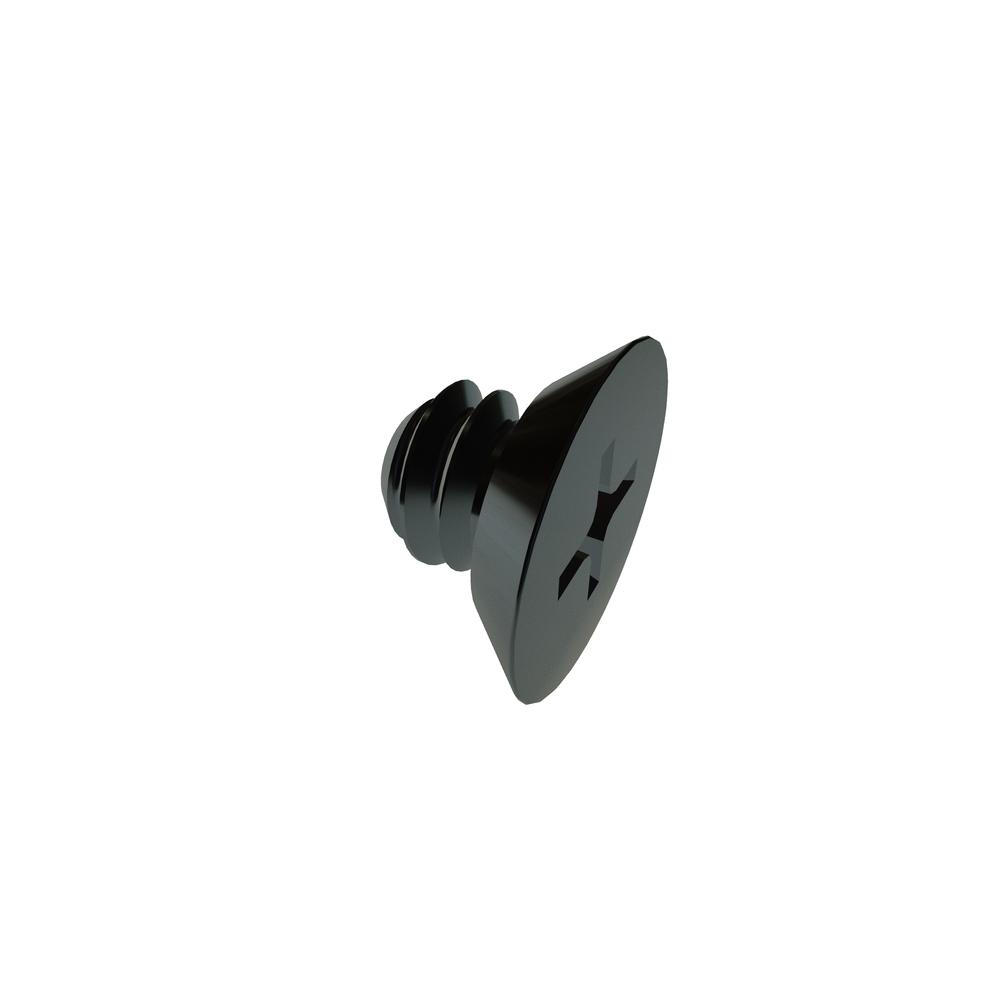

Image for reference purposes only. Actual product may vary.
4C12PFUZR
4-40 X 1/8 PHIL FLAT U/C STL ZN CR3
Alternate Codes: 90273A412
4-40 X 1/8 Phillips Flat Head Undercut Steel Zinc Plated RoHS3
$0.000 / EA
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
Out of stock
| Length | 0.12in |
| Thread Size | 4-40 |
| Finish | Zinc Cr3 |
| Material | Steel |
| Drive Type | Phillips |
| Head Height (Min.) | 0.038in |
| Head Height (Max.) | 0.047in |
| Drive Size | 1 |
| Recess Depth (Max.) | 0.071in |
| Additional Industry Cross Reference | 90273A412 |
| Recess Depth (Min.) | 0.055in |
| RoHS | Compliant |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.112in |
| Head Type | Flat Undercut |
| Recess Diameter | 0.110in |
| Brand | VARIED |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.212in |
| Head Diameter (Min.) | 0.191in |
