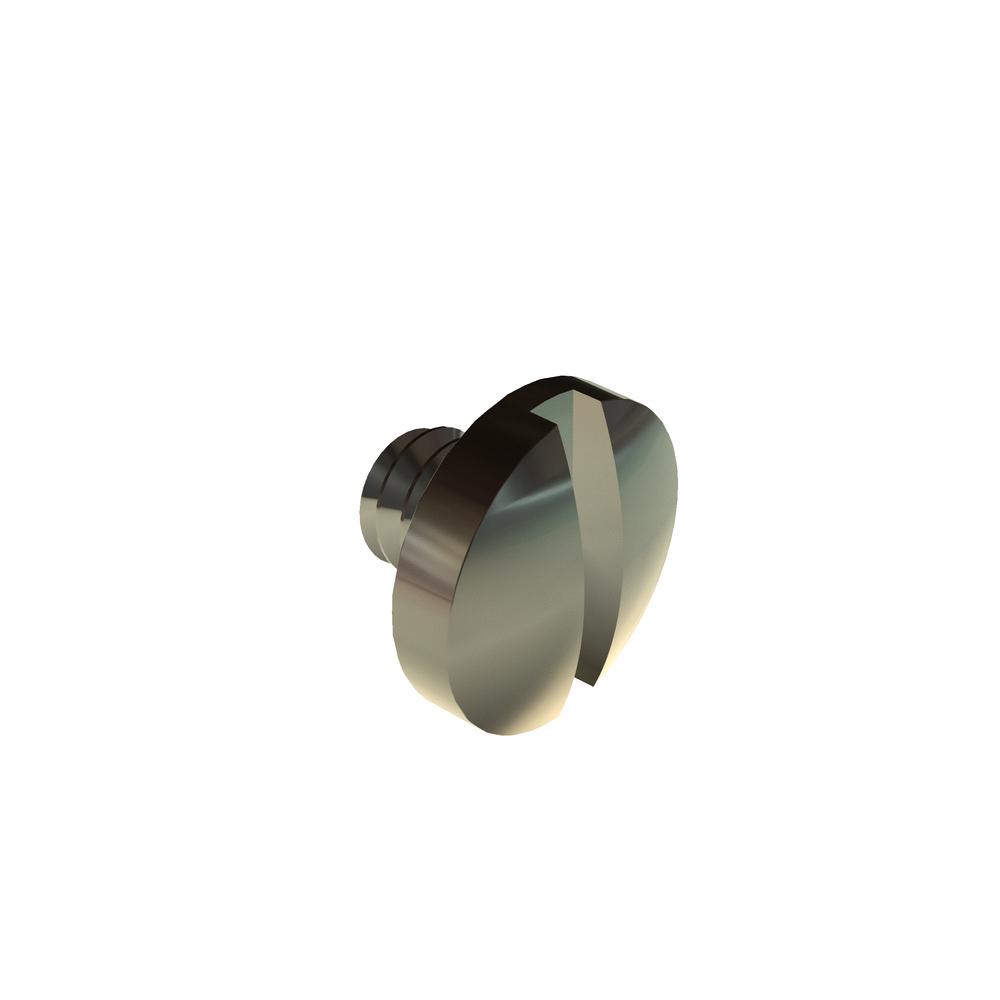

4-40 X 1/8 SLOT BIND SST RoHS
4C12SBMS
| Item Id | 4C12SBMS |
| Description | 4-40 X 1/8 SLOT BIND SST RoHS |
| Alternate Codes | 47-200948-01, 91793A103 |
| Extended Description | |
| Packaging | EA |
| Additional Industry Cross Reference | 91793A103 |
| Brand | VARIED |
| Drive Type | Slotted |
| Finish | Plain |
| Head Diameter (Max.) | 0.235in |
| Head Diameter (Min.) | 0.223in |
| Head Height (Max.) | 0.068in |
| Head Height (Min.) | 0.061in |
| Head Oval Height (Max.) | 0.025in |
| Head Oval Height (Min.) | 0.018in |
| Head Type | Binding |
| Length | 0.12in |
| Material | Stainless Steel |
| Meets (Standard) | ASME B18.6.3 |
| Nominal Diameter | 0.112in |
| RoHS | Compliant |
| Slot Depth (Max.) | 0.042in |
| Slot Depth (Min.) | 0.030in |
| Slot Width (Max.) | 0.039in |
| Slot Width (Min.) | 0.031in |
| Thread Size | 4-40 |
| Thread Type | Unified Coarse Thread (UNC) |
| Type | Machine Screw |
| Units | Inch |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
