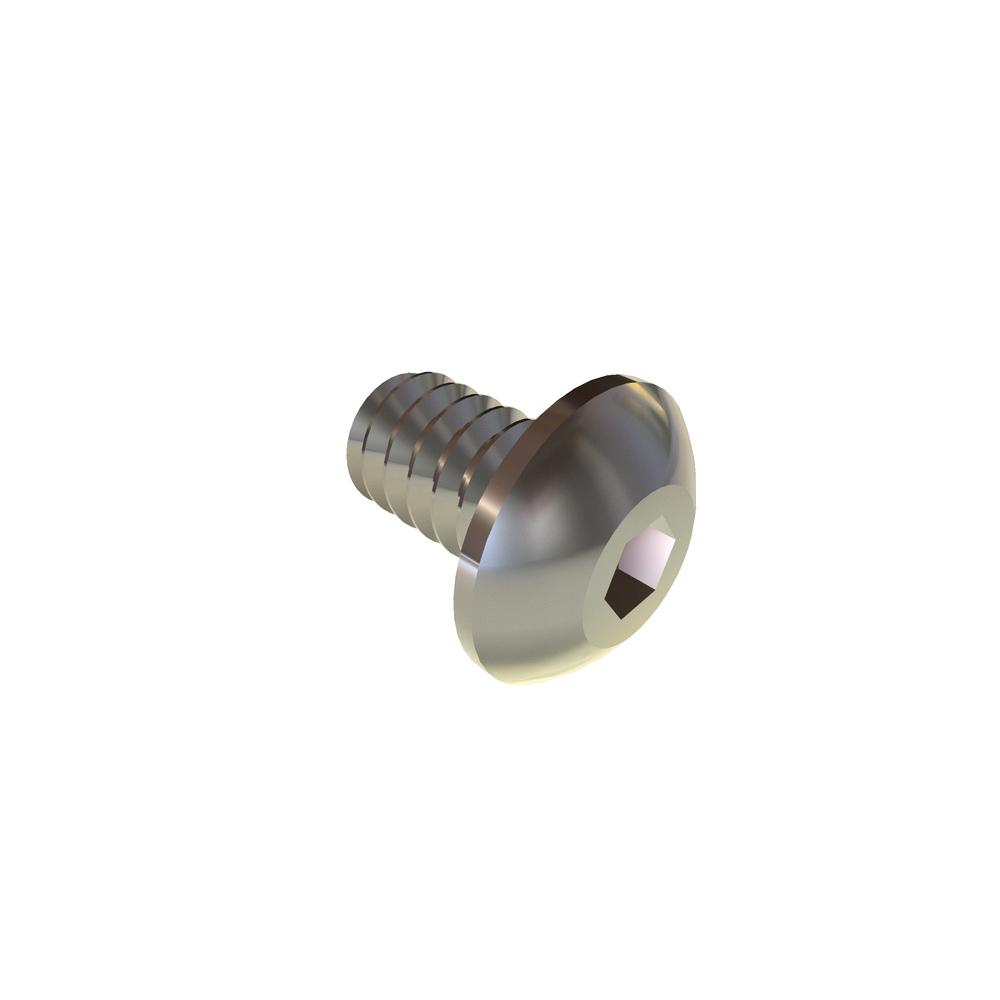

4C18BHCS
4-40 X 3/16 BUT SOC SST RoHS
Alternate Codes: 12-0003379, 780-00248
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | Call For |
|---|---|---|---|---|---|
| $0.456 | $0.240 | $0.190 | $0.176 | $0.147 | Larger Quantities |
In Stock
| Thread Size | 4-40 |
| Material | Stainless Steel |
| Finish | Plain |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.112in |
| Head Type | Button |
| Drive Type | Hex Socket |
| Fillet Transition Diameter (Min.) | 0.122in |
| Fillet Transition Diameter (Max.) | 0.132in |
| Head Side Height (Ref.) | 0.015in |
| Key Engagement | 0.035in |
| Brand | VARIED |
| Additional Industry Cross Reference | 92949A105 |
| Length | 3/16in |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.3 |
| Head Diameter (Max.) | 0.213in |
| Head Diameter (Min.) | 0.201in |
| Head Height (Max.) | 0.059in |
| Head Height (Min.) | 0.051in |
| Hex Socket Size | 0.063in |
