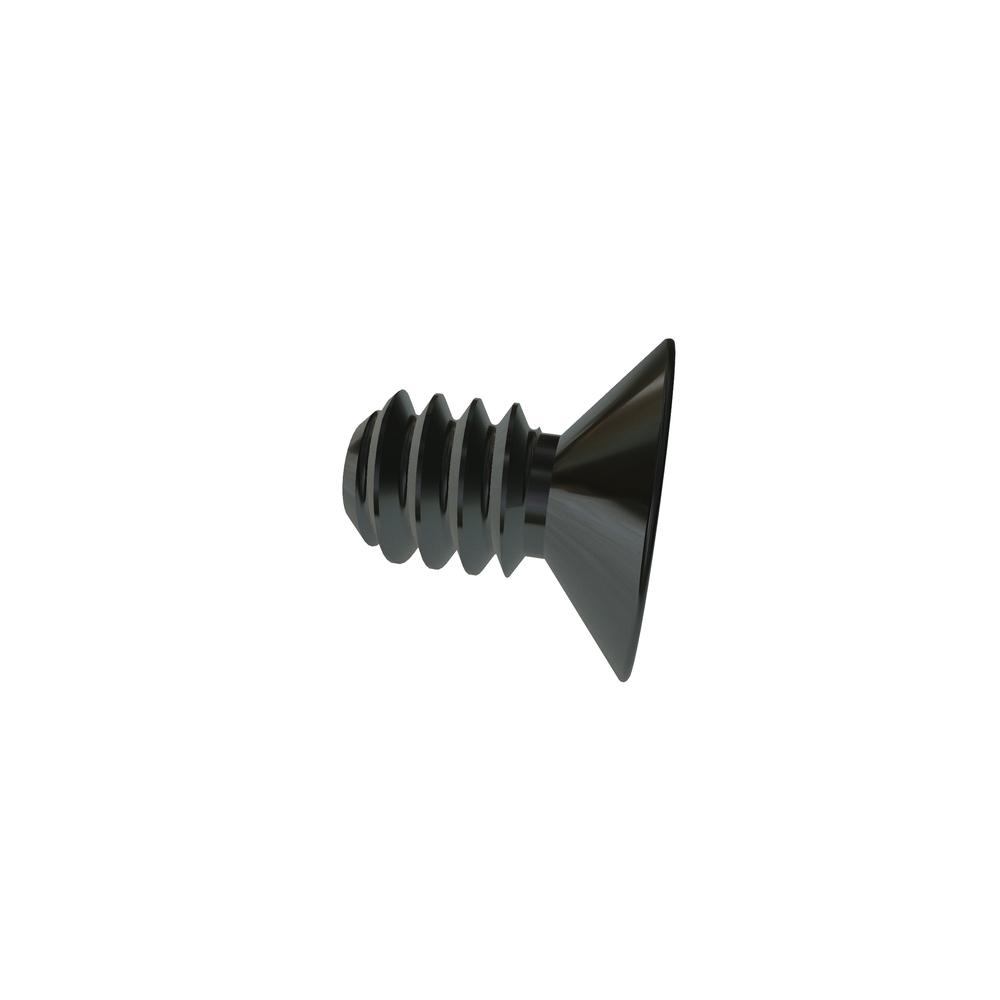

4C18PFHZR
4-40 X 3/16 PHIL FLAT 100 DEG STL ZN CR3
Alternate Codes: 4C18PFHZt, 90471A150, 93004-052
RoHS
Pricing per Unit
| 1-499 pcs | 500-999 pcs | 1000-2499 pcs | 2500-4999 pcs | 5000-9999 pcs | Call For |
|---|---|---|---|---|---|
| $0.117 | $0.072 | $0.052 | $0.040 | $0.037 | Larger Quantities |
In Stock
| Thread Size | 4-40 |
| Material | Steel |
| Finish | Zinc Cr3 |
| Units | Inch |
| Drive Type | Phillips |
| Drive Size | 1 |
| Recess Diameter | 0.110in |
| Nominal Thread Size | 0.112in |
| Head Height | 0.049in |
| Recess Depth (Min.) | 0.055in |
| Recess Depth (Max.) | 0.071in |
| Brand | VARIED |
| Type | Flat Head 100 Degree |
| Additional Industry Cross Reference | 90471A150 90471A150 |
| Length | 0.18in |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.212in |
| Head Diameter (Min.) | 0.188in |
