4C18PFUSB

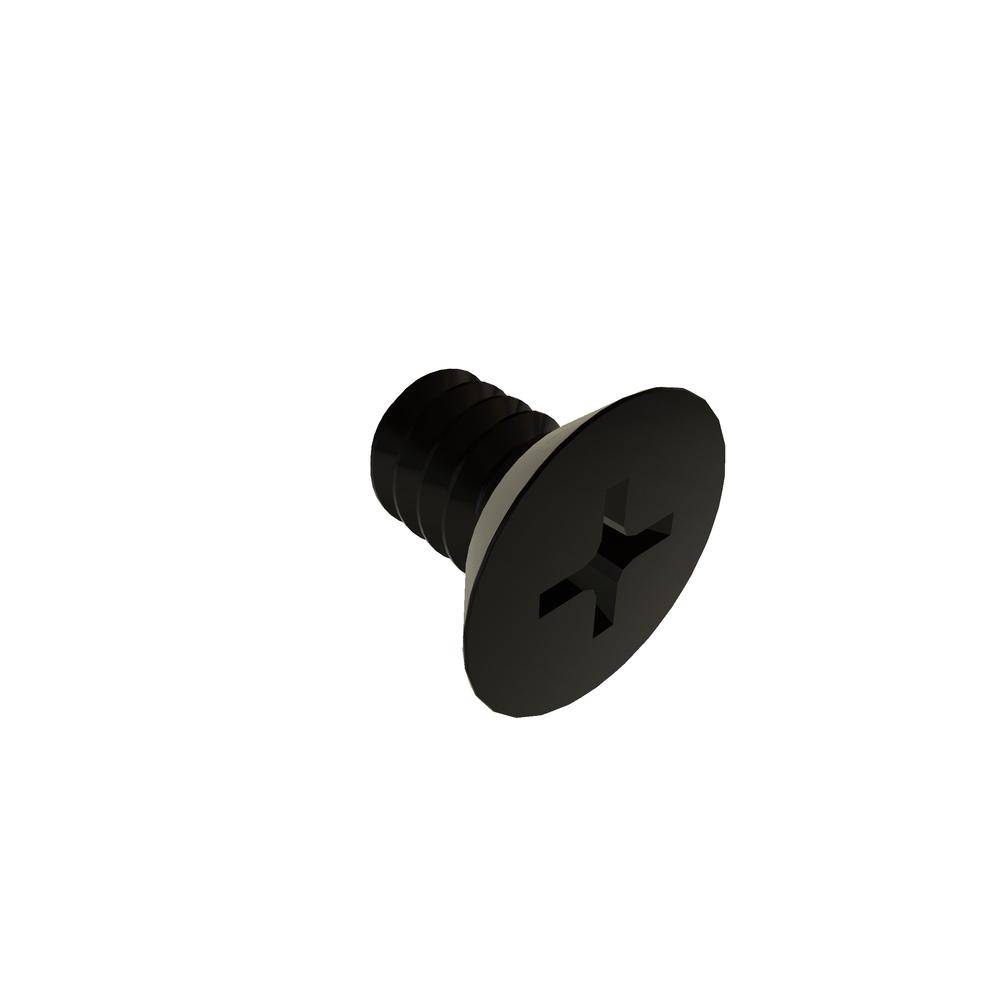

4-40 X 3/16 PHIL FLAT U/C SST RoHS BLK
Alternate Codes: 96640A052
RoHS
Pricing per Unit
| 1-499 pcs | 500-999 pcs | 1000-2499 pcs | 2500-4999 pcs | 5000-9999 pcs |
|---|---|---|---|---|
| $0.091 | $0.056 | $0.041 | $0.031 | $0.029 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
| Thread Size | 4-40 |
| Material | Stainless Steel |
| Finish | Black Oxide |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.112in |
| Head Type | Flat Undercut |
| Drive Type | Phillips |
| Drive Size | 1 |
| Recess Diameter | 0.110in |
| Recess Depth (Min.) | 0.055in |
| Recess Depth (Max.) | 0.071in |
| Brand | VARIED |
| Additional Industry Cross Reference | 96640A052 |
| Length | 0.18in |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.212in |
| Head Diameter (Min.) | 0.191in |
| Head Height (Max.) | 0.047in |
| Head Height (Min.) | 0.038in |
