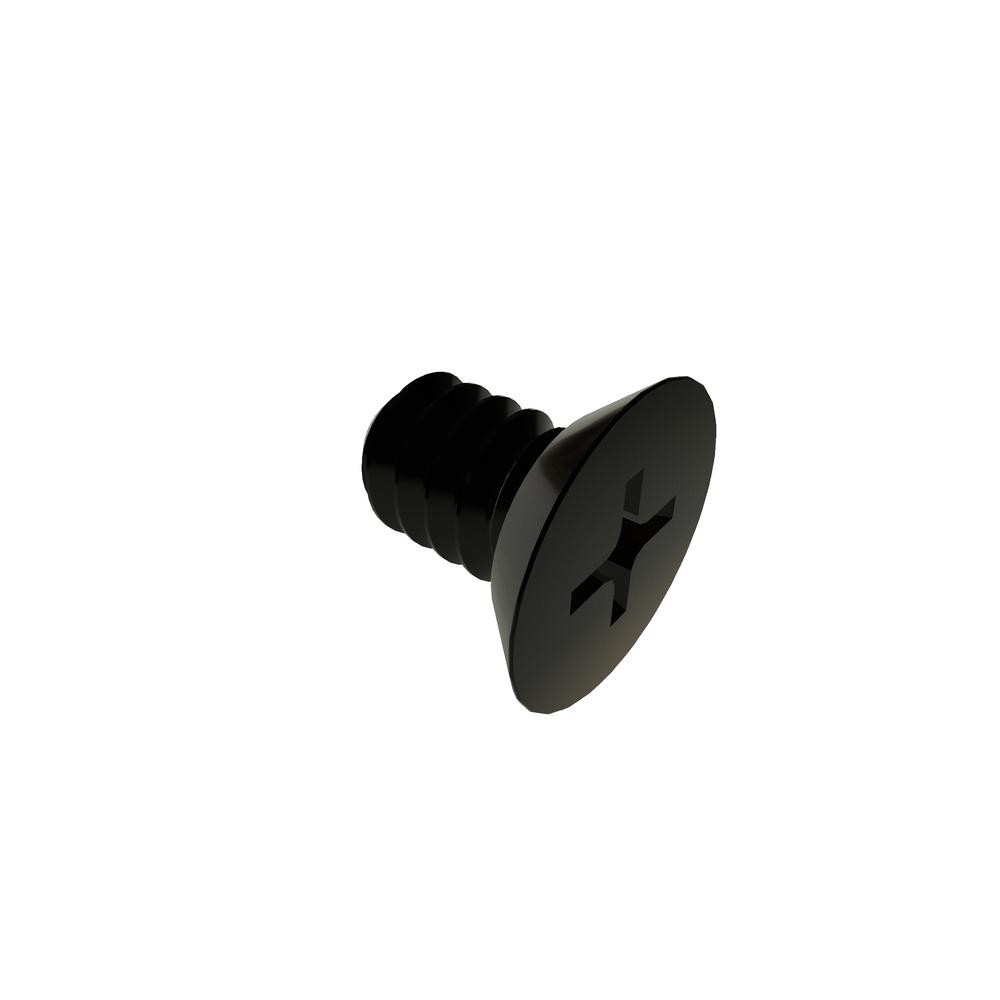

Image for reference purposes only. Actual product may vary.
4C18PFUZB/P
4-40 X 3/16 PHIL FLAT U/C PATCH STL BLK
Alternate Codes: N/A
4-40 X 3/16 Phillips Flat Head Undercut Patch Steel Black Oxide RoHS
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | Call For |
|---|---|---|---|---|---|
| $0.508 | $0.267 | $0.212 | $0.196 | $0.164 | Larger Quantities |
In Stock
Maximum stock already in cart
| Drive Size | 1 |
| Head Diameter (Max.) | 0.212in |
| Material | Steel |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Min.) | 0.191in |
| Length | 3/16in |
| Nominal Diameter | 0.112in |
| Finish | Black Oxide |
| Thread Type | Unified Coarse Thread (UNC) |
| Thread Size | 4-40 |
| Head Type | Flat Undercut |
| Head Height (Max.) | 0.047in |
| Head Height (Min.) | 0.038in |
| Brand | VARIED |
| Units | Inch |
| Locking Element | Patchlock |
| Drive Type | Phillips |
| Recess Depth (Min.) | 0.055in |
| Recess Depth (Max.) | 0.071in |
| RoHS | Compliant |
| Recess Diameter | 0.110in |
