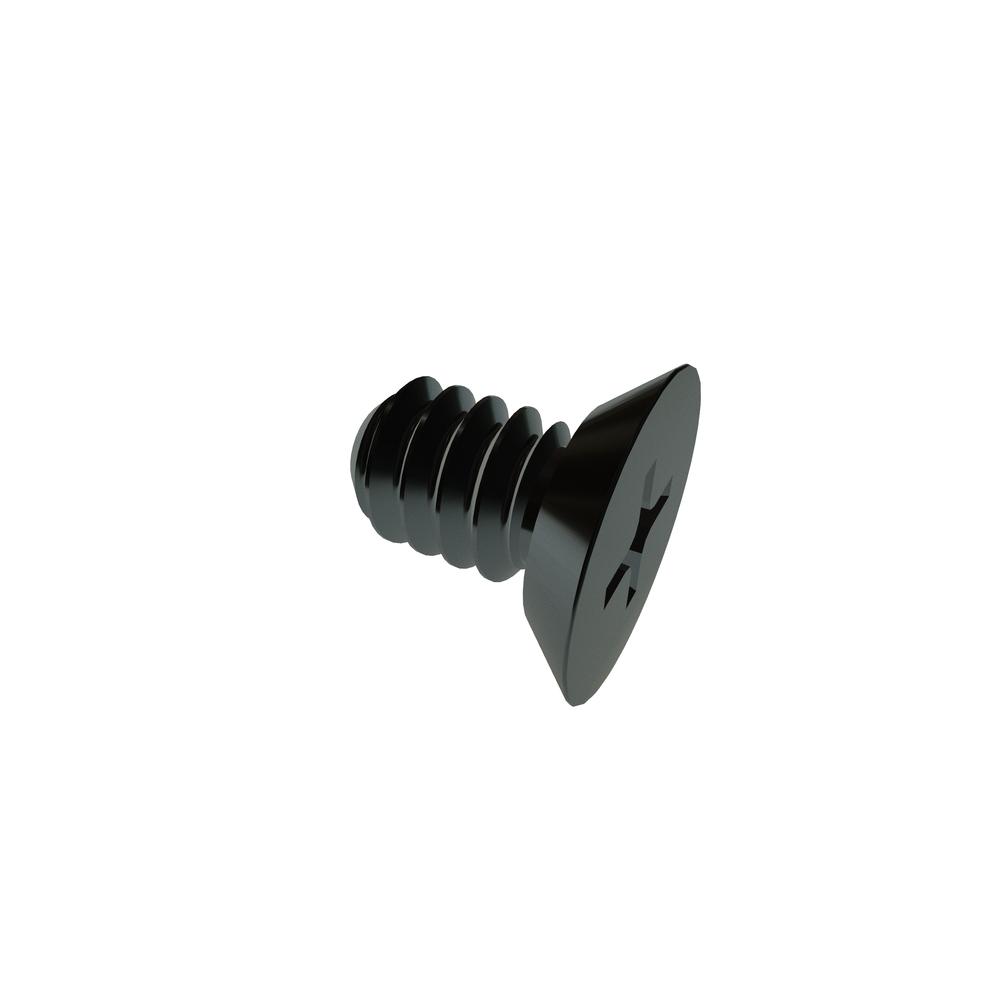

4-40 X 3/16 PHIL FLAT U/C STL ZN CR3
4C18PFUZR
| Item Id | 4C18PFUZR |
| Description | 4-40 X 3/16 PHIL FLAT U/C STL ZN RoHS |
| Alternate Codes | 001208, 134910, 205-0119-01, 300-00041-01, 4C18PFMZR, 4C18PFUZt, 90273A105 |
| Extended Description | |
| Packaging | EA |
| Additional Industry Cross Reference | 90273A105 |
| Brand | VARIED |
| Drive Size | 1 |
| Drive Type | Phillips |
| Finish | Zinc Cr3 |
| Head Diameter (Max.) | 0.212in |
| Head Diameter (Min.) | 0.191in |
| Head Height (Max.) | 0.047in |
| Head Height (Min.) | 0.038in |
| Head Type | Flat Undercut |
| Length | 0.18in |
| Material | Steel |
| Meets (Standard) | ASME B18.6.3 |
| Nominal Diameter | 0.112in |
| Recess Depth (Max.) | 0.071in |
| Recess Depth (Min.) | 0.055in |
| Recess Diameter | 0.110in |
| RoHS | Compliant |
| Thread Size | 4-40 |
| Thread Type | Unified Coarse Thread (UNC) |
| Units | Inch |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
