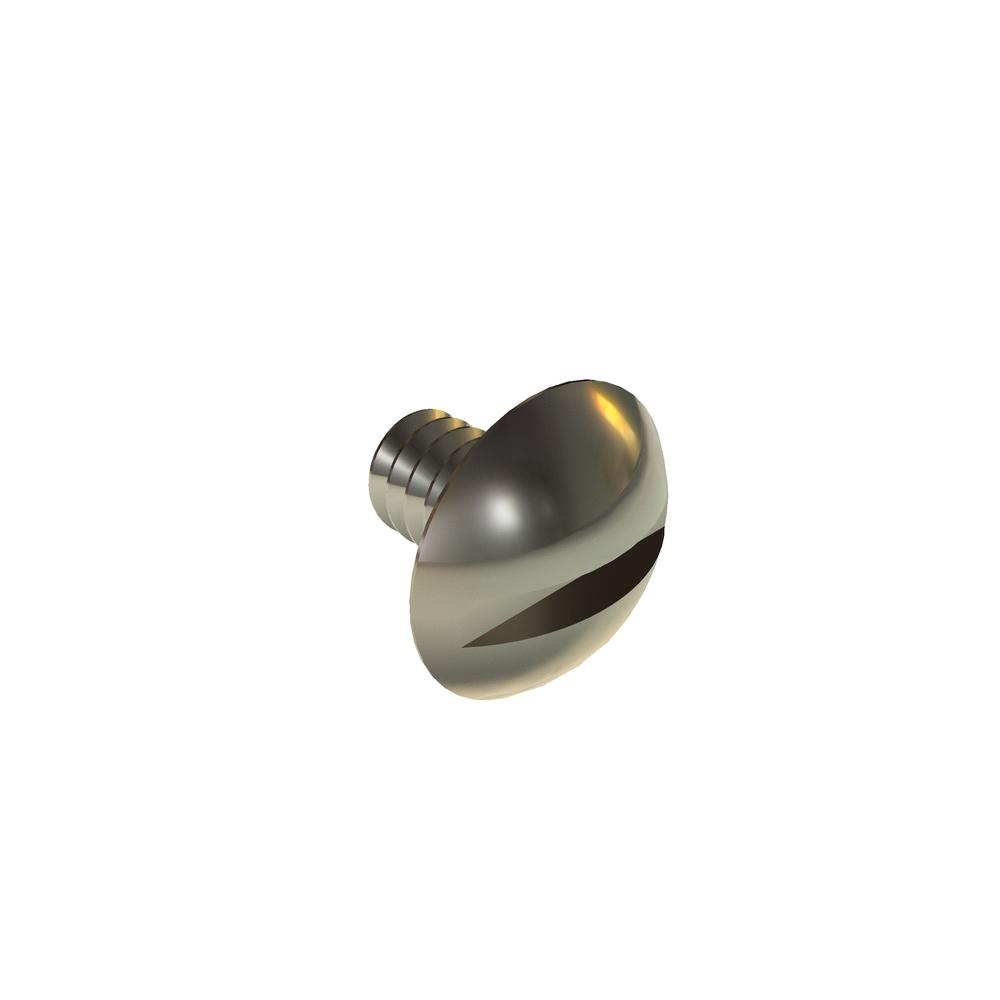

4C18STMS
4-40 X 3/16 SLOT TRUSS SST RoHS
Alternate Codes: N/A
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | Call For |
|---|---|---|---|---|---|
| $0.487 | $0.256 | $0.203 | $0.187 | $0.157 | Larger Quantities |
In Stock
| Thread Size | 4-40 |
| Material | Stainless Steel |
| Finish | Plain |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.112in |
| Head Type | Truss |
| Drive Type | Slotted |
| Head Radius (Min.) | 0.169in |
| Slot Depth (Min.) | 0.030in |
| Slot Depth (Max.) | 0.040in |
| Slot Width (Min.) | 0.031in |
| Slot Width (Max.) | 0.039in |
| Brand | VARIED |
| Length | 0.18in |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.257in |
| Head Diameter (Min.) | 0.241in |
| Head Height (Max.) | 0.069in |
| Head Height (Min.) | 0.059in |
