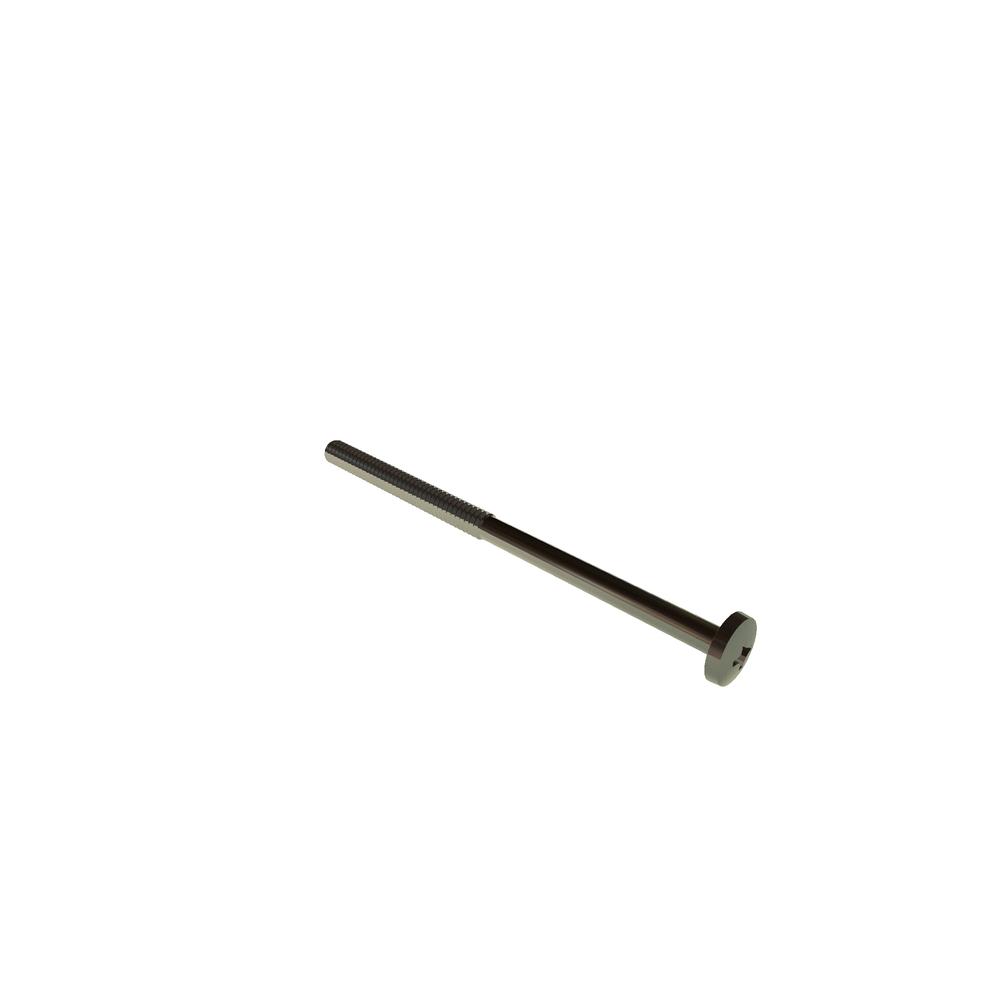

4C200PBMS
4-40 X 2 PHIL BIND SST RoHS
Alternate Codes: N/A
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
| Thread Size | 4-40 |
| Material | Stainless Steel |
| Finish | Plain |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.112in |
| Head Type | Binding |
| Drive Type | Phillips |
| Recess Diameter | 0.111in |
| Recess Depth (Min.) | 0.052in |
| Recess Depth (Max.) | 0.070in |
| Head Oval Height (Min.) | 0.018in |
| Head Oval Height (Max.) | 0.025in |
| Brand | VARIED |
| Type | Machine Screw |
| Length | 2.00in |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.235in |
| Head Diameter (Min.) | 0.223in |
| Head Height (Max.) | 0.068in |
| Head Height (Min.) | 0.061in |
