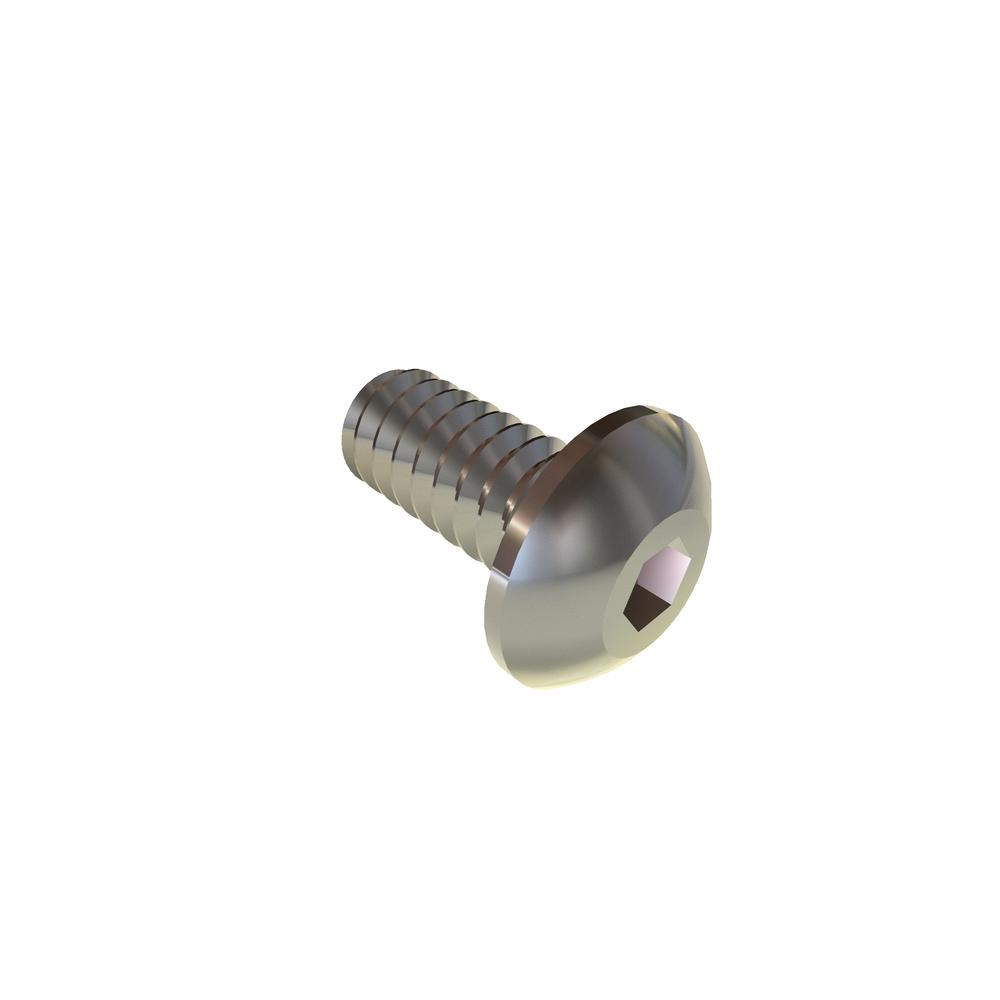

4-40 X 1/4 BUT SOC SST RoHS
4C25BHCS
| Item Id | 4C25BHCS |
| Description | 4-40 X 1/4 BUT SOC SST RoHS |
| Alternate Codes | 004680, 12-0002538, 194263, 2806-0508-04, 2826-2441, 381-050209-00A0, 4300572-05, 616-0163, 703205-00, 780-00247, E0016 |
| Extended Description | |
| Packaging | EA |
| Additional Industry Cross Reference | 92949A106 |
| Brand | VARIED |
| Drive Type | Hex Socket |
| Fillet Transition Diameter (Max.) | 0.132in |
| Fillet Transition Diameter (Min.) | 0.122in |
| Finish | Plain |
| Head Diameter (Max.) | 0.213in |
| Head Diameter (Min.) | 0.201in |
| Head Height (Max.) | 0.059in |
| Head Height (Min.) | 0.051in |
| Head Side Height (Ref.) | 0.015in |
| Head Type | Button |
| Hex Socket Size | 0.063in |
| Key Engagement | 0.035in |
| Length | 1/4in |
| Material | Stainless Steel |
| Meets (Standard) | ASME B18.3 |
| Nominal Diameter | 0.112in |
| RoHS | Compliant |
| Thread Size | 4-40 |
| Thread Type | Unified Coarse Thread (UNC) |
| Units | Inch |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
