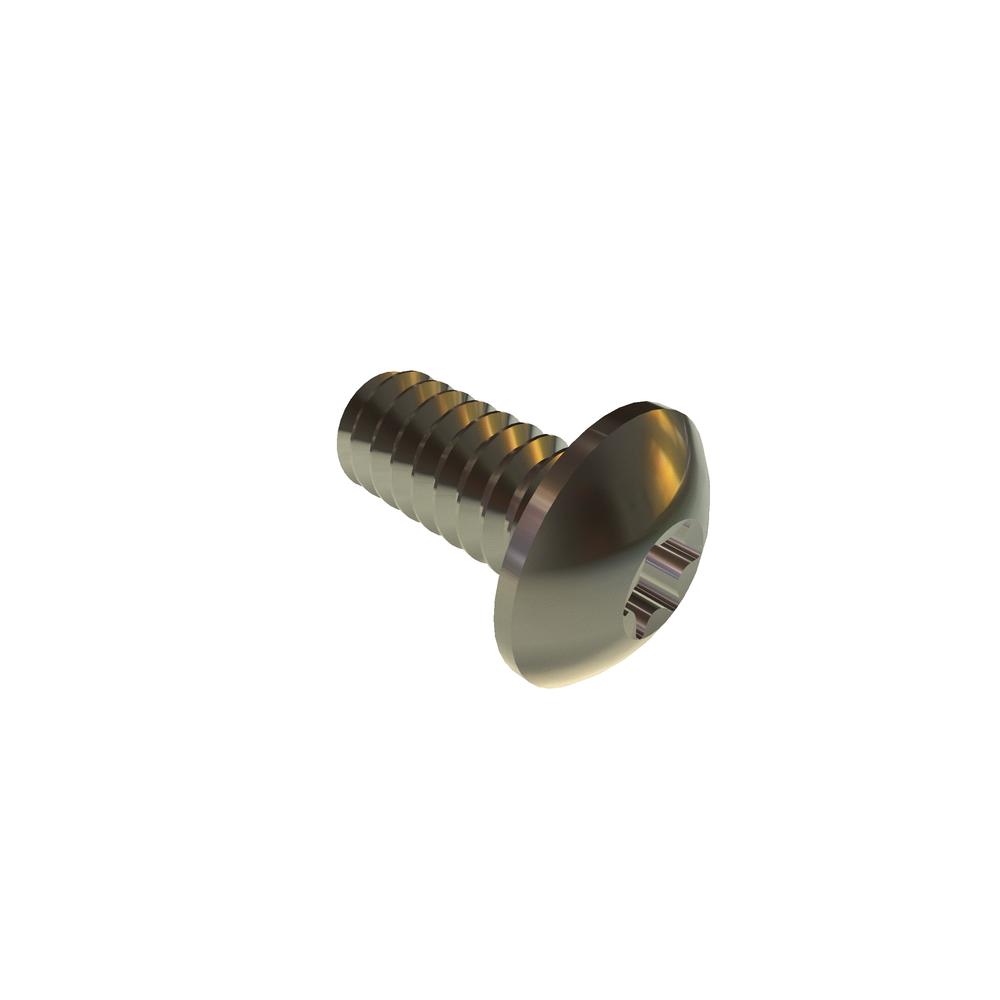

4C25BHXS/P
4-40 X 1/4 BUT HD TORX PATCH SST RoHS
Alternate Codes: N/A
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
Out of stock
| Thread Size | 4-40 |
| Material | Stainless Steel |
| Finish | Plain |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.112in |
| Head Type | Button |
| Drive Type | Torx Socket |
| Drive Size | T8 |
| Fillet Transition Diameter (Min.) | 0.122in |
| Fillet Transition Diameter (Max.) | 0.132in |
| Head Side Height (Ref.) | 0.015in |
| Torx Socket Size | 0.090in |
| Self Locking Type | Patchlock |
| Brand | VARIED |
| Key Engagement (Min.) | 0.035in |
| Length | 0.2500in |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.3 |
| Head Diameter (Max.) | 0.213in |
| Head Diameter (Min.) | 0.201in |
| Head Height (Max.) | 0.059in |
| Head Height (Min.) | 0.051in |
| Hex Socket Size | 0.062in |
