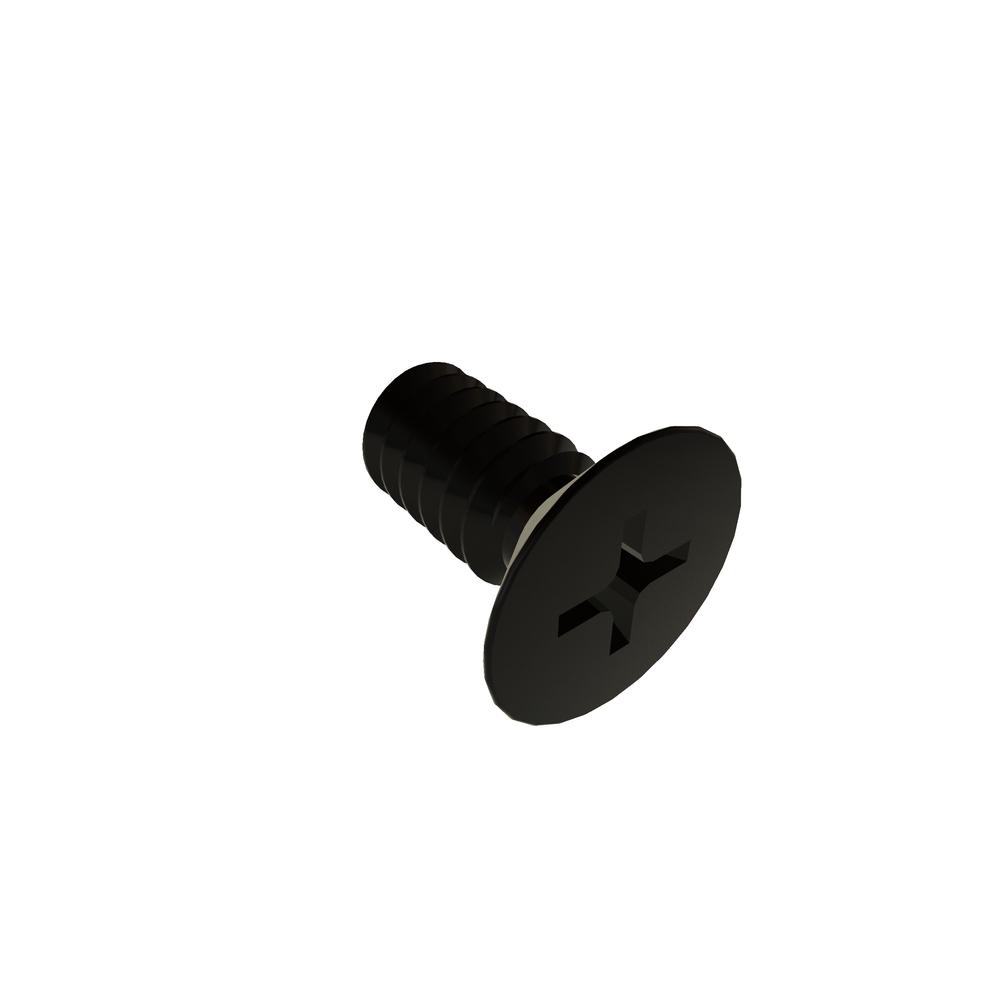

4-40 X 1/4 PHIL FLAT 100 DEG SST RoHS
4C25PFHSB
| Item Id | 4C25PFHSB |
| Description | 4-40 X 1/4 PHIL FLAT 100 DEG SST BLK OX |
| Extended Description | RoHS |
| Packaging | EA |
| Brand | VARIED |
| Drive Size | 1 |
| Drive Type | Phillips |
| Finish | Black Oxide |
| Head Diameter (Max.) | 0.212in |
| Head Diameter (Min.) | 0.188in |
| Head Height | 0.049in |
| Length | 0.25in |
| Material | Stainless Steel |
| Meets (Standard) | ASME B18.6.3 |
| Nominal Thread Size | 0.112in |
| Recess Depth (Max.) | 0.071in |
| Recess Depth (Min.) | 0.055in |
| Recess Diameter | 0.110in |
| RoHS | Compliant |
| Thread Size | 4-40 |
| Type | Flat Head 100 Degree |
| Units | Inch |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
