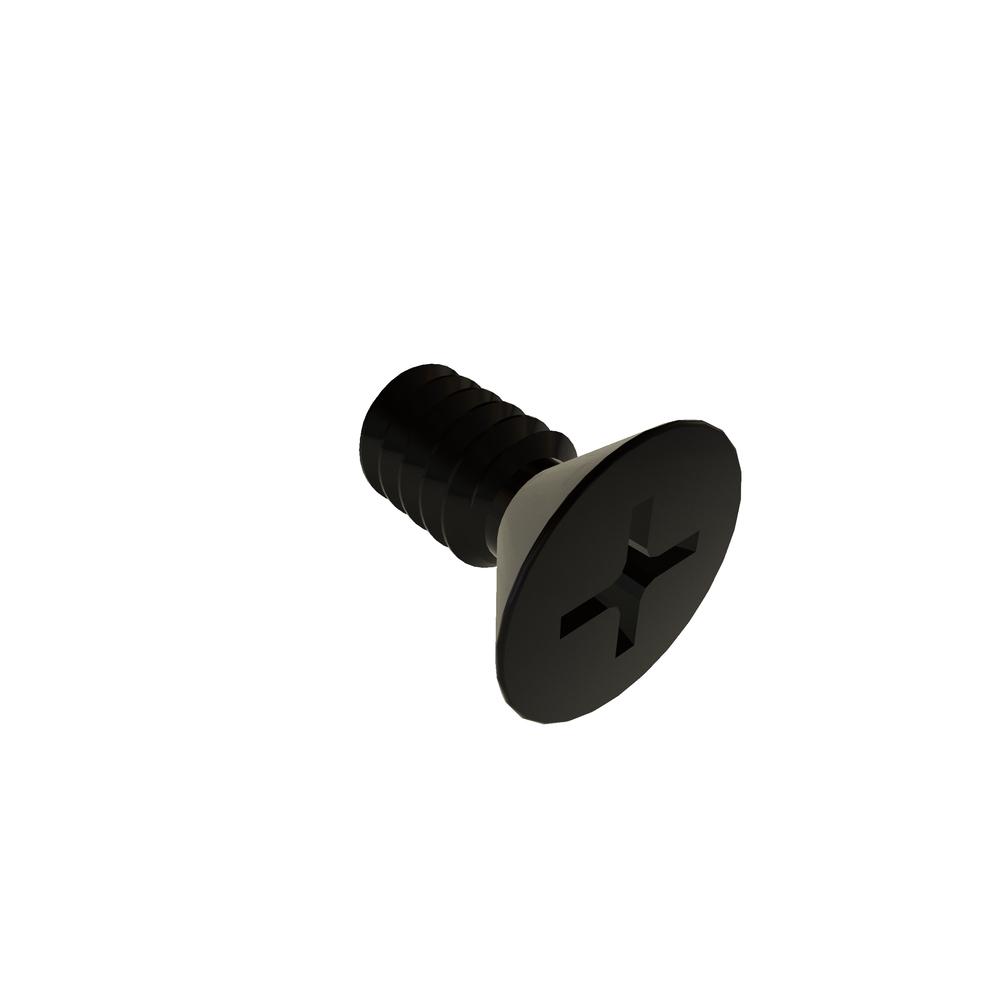

4-40 X 1/4 PHIL FLAT STL BLK RoHS
4C25PFMZB
| Item Id | 4C25PFMZB |
| Description | 4-40 X 1/4 PHIL FLAT STL BLK OX RoHS |
| Alternate Codes | 1000-0004, 113A-0640, 1901-0033, 25742, 262-000009-0250, 490-0062, 600130, 702045-00, 81-0247-UNG |
| Extended Description | |
| Packaging | EA |
| Brand | VARIED |
| Drive Size | 1 |
| Drive Type | Phillips |
| Finish | Black Oxide |
| Head Diameter (Max.) | 0.212in |
| Head Diameter (Min.) | 0.191in |
| Head Height | 0.067in |
| Head Type | Flat |
| Length | 0.25in |
| Material | Steel |
| Meets (Standard) | ASME B18.6.3 |
| Nominal Diameter | 0.112in |
| Recess Depth (Max.) | 0.082in |
| Recess Depth (Min.) | 0.066in |
| Recess Diameter | 0.122in |
| RoHS | Compliant |
| Thread Size | 4-40 |
| Thread Type | Unified Coarse Thread (UNC) |
| Units | Inch |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
